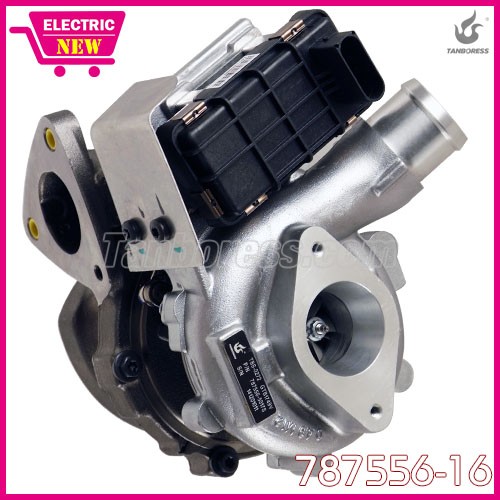

Turbocharger 787556 Turbo Charger

Turbocharger 787556 Turbo Charger
Turbocharger 787556 Turbo Charger
Previous
Next
OEM No/Model:

787556-16

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,D/A,T/T,M/T,D/D,CASH,D/P

Price Terms:

EXW

Delivery Port:

Dalian,Others

Delivery Time:

Withthin 7 Days After Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger 787556 Turbo Charger

Product Attribute:

Engine Model:WCLD 4D56

Turbo Model:TD04-10T

Turbine Material:K18

Power:85kw

Displacement:2.5ml

Make Model:Mitsubishi Pajero II 2.5 TD

Turbo Part No.1:49177-01503

Turbo Part No.2:49177-01504

Turbo Part No.3:49177-01505

Comparison No.1:MR355223

Comparison No.2:MD194843

Capacity:2477 cmm

KW/HP:99 HP

Build:Jan.1993

Application:

Ford Transit 2.2 TDCi

Product Description:

Turbocharger 787556 Turbo Charger

TBS No. TBS-0272 Related Part No. Application For
OEM No. 787556-16 787556-16
787556-5017S
787556-17
787556-0017
787556-0016
787556-5016S
BK3Q6K682PC
BK3Q6K682PB
BK3Q6K682CB
BK3Q-6K682-PC
BK3Q-6K682-PB
BK3Q-6K682-CB
1717628
1719695
1760759
Ford Transit 2.2 TDCi
Turbo Model GTB1749V
Engine Code Puma
Cooled Type Oil cooled
Power 153HP
Build/Year 2011
Capacity 2.2L D
Fuel Type Diesel
Net Weight 8kg
Gross Weight 9kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001

Material Description
1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10


Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.



Machining Precision Description

High-precision processing equipmentHARDINGE CNC

4-axis linkage machining centerJirfine Taiwan CNC


1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.     Turbine Wheel: Overall friction welding technology


The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!



Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)


Now, Contact us for more professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
