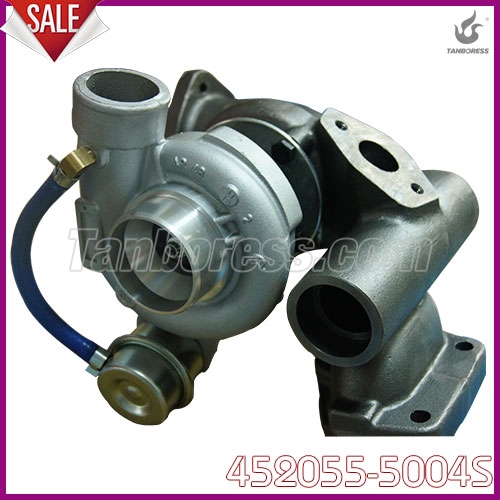

T250 Turbo Charger For Land-Rover TurboCharger

Product Name:

T250 Turbo Charger For Land-Rover TurboCharger

Product Attribute:

Engine Model:300 TDI/GEMINI III

Turbo Model:T250

Engine Power:84.75kw

Size:39*32*26cm

G.W:11kg

Turbine Material:K18

Application:

Land-Rover Discovery I 2.5 TDI Land-Rover Range Rover 2.5 TDI

Product Description:

T250 Turbo Charger For Land-Rover TurboCharger

Material Description

• 1.     Compressor Housing : ZL 101 Cast aluminum
• 2.     Turbine Housing : D-5S. Scope of heat-resistant950°
• 3.     Bearing Housing : HT250 Gray iron
• 4.     Compressor Wheel : ZL201 or C355 cast aluminums
• 5.     Turbine Wheel : K18. Scope of heat-resistant950°
• 6.     Turbine Shaft : 42CrMo
• 7.     Floating Bearing : CW713R
• 8.     Seal Ring : CrMoNiTi
• 9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

• 1.     Compressor Housing: Machining precision up to IT6 grades
• 2.     Turbine Housing: Machining precision up to IT6 grades
• 3.     Center Housing: Machining precision up to IT6 grades
• 4.     Compressor Wheel: Accurate run-out, verticality and ovality
• 5.     Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.   Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing:

• 1.Neutral Packing Or the package as requirement.
• 2.One turbo in a Carton.
• 3.Wooden case is a good choice for ocean shipping.

Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
