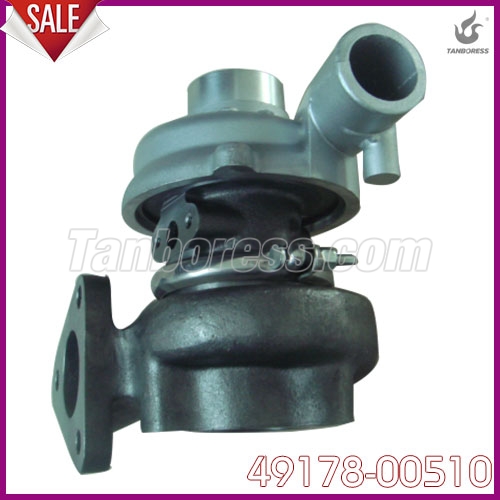

Td05 Turbo Charger For Mitsubishi Turbocharger

Td05 Turbo Charger For Mitsubishi Turbocharger
Td05 Turbo Charger For Mitsubishi Turbocharger
Previous
Next
OEM No/Model:

49178-00510

Minimum Order:

5Piece/Pieces

Export Ratio:

91% - 100%

Unit Price:

100-500

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,D/P,Paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement 2.One Turbo In A Carton 3.Wooden Case Is A Good Choice For Ocean Shipping

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Td05 Turbo Charger For Mitsubishi Turbocharger

Product Attribute:

Engine Model:4D31, 4D31T

Turbo Model:TD05

Size:20*20*24cm

G.W:8kg

Turbine Material:K18

Application:

Mitsubishi Various Marine

Product Description:

Turbocharger TD05 Turbo Charger For Mitsubishi 49178-00510

TBS No. TBS-0439 Related Part No. Application For
OEM No. 49178-00510 49178-00510
49178-00500
49178-00530
49178-00540
49178-00520
49178-00550
ME080442
M013134
ME080098
Mitsubishi Various Marine
Turbo Model TD05
Engine Code 4D31, 4D31T
Cooled Type Oil cooled
Power
Build/Year
Capacity
Fuel Type Diesel
Net Weight 7KG
Gross Weight 8KG
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001

Material Description
1.     Compressor Housing : ZL 101 Cast aluminum

2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
