Product Name:

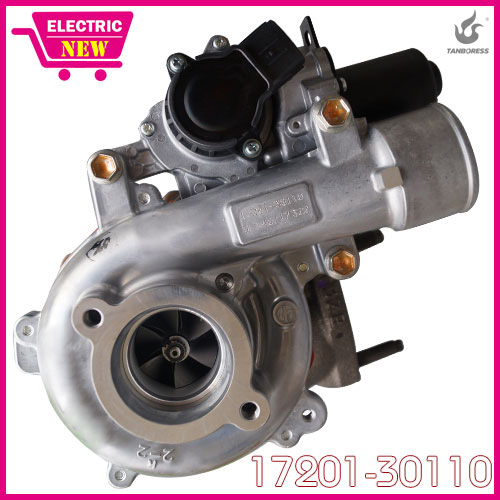

CT16V 17201-30110 Turbocharger For Toyota Turbo
Product Attribute:
Engine Model:1KD-FTV
Turbo Model:CT16V
Engine Power:171kw
Size:24*25*28cm
G.W:9kg
Turbine Material:K18
Power:171kw
Displacement:OEMl
Cooled Type:Water cooled
Build/Year:2005
Capacity:2982CCM
Brand:TANBORESS
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Item Name:CT16V 17201-30110 Turbocharger For Toyota Turbo
Tag:CT16V
Application:
Toyota Hilux 3.0 D4D Toyota LandCruiser
Product Description:
CT16V 17201-30110 Turbocharger For Toyota Turbo
TBS No.
|
TBS-0859 |
Related Part No. |
Application For |
OEM No. |
17201-30110 |
17201-30110
1720130110
17201-0L040
172010L040
17201-OL040
17201OL040 |
Toyota Hilux 3.0 D4D
Toyota LandCruiser |
Turbo Model |
CT16V |
Engine Code |
1KD-FTV |
Cooled Type |
Water cooled |
Power |
171HP |
Build/Year |
2005 |
Capacity |
2982ccm |
Fuel Type |
Diesel |
Net Weight |
|
Gross Weight |
|
Volume |
|
Brand |
Tanboress |
Warranty |
12 Months |
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
-
Compressor Housing : ZL 101 Cast aluminum
-
Turbine Housing : D-5S. Scope of heat-resistant950°
-
Bearing Housing : HT250 Gray iron
-
Compressor Wheel : ZL201 or C355 cast aluminums
-
Turbine Wheel : K18. Scope of heat-resistant950°
-
Turbine Shaft : 42CrMo
-
Floating Bearing : CW713R
-
Seal Ring : CrMoNiTi
-
Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
-
Compressor Housing: Machining precision up to IT6 grades
-
Turbine Housing: Machining precision up to IT6 grades
-
Center Housing: Machining precision up to IT6 grades
-
Compressor Wheel: Accurate run-out, verticality and ovality
-
Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1.The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing:
-
Neutral Packing Or the package as requirement.
-
One turbo in a Carton.
-
Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
