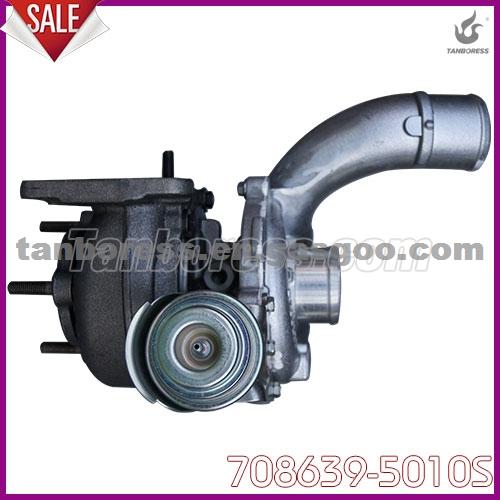

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 708639-0004

Product Name:

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 708639-0004

Product Attribute:

Engine Model:F9Q/D4192T3

Turbo Model:GT1749V

Engine Power:85kw

Size:22*24*26cm

G.W:7kg

Turbine Material:K18

Power:85kw,115HP/120HP/88KW/85KW

Name:Turbocharger GT1749V Turbo 708639-0004

Item name:708639-0004

Cooled Type:Oil cooled

Build/Year:2001-2006

Capacity:1870-1990 ccm

Fuel Type:Diesel

Net Weight:5kg

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Application:

Mitsubishi Space Star 1.9 DI-D Mitsubishi Carisma 1.9 DI-DHP Nissan Primera 1.9 DCI Renault Espace III 1.9 dCi Renault Espace IV 1.9 dCi Renault Laguna II 1.9 dCi Renault Megane II 1.9 DCI Renault Scenic II 1.9 Dci Volvo-PKW V40 1.9D Volvo-PKW S40 I 1.9 D

Product Description:

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 708639-0004

Material Description
1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)
