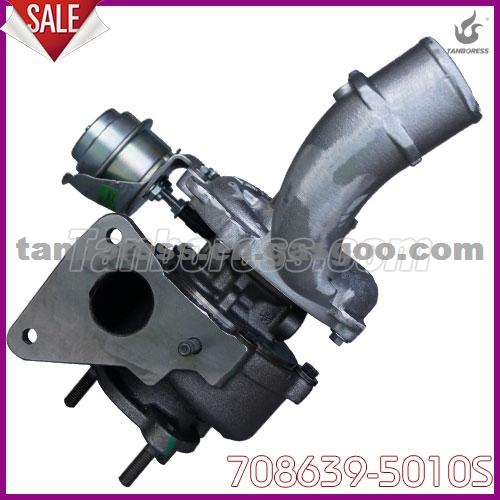

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 7701472775

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 7701472775
Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 7701472775
Previous
Next
OEM No/Model:

7701472775

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 7701472775

Product Attribute:

Engine Model:F9Q/D4192T3

Turbo Model:GT1749V

Engine Power:85kw

Size:22*24*26cm

G.W:7kg

Turbine Material:K18

Power:85kw,115HP/120HP/88KW/85KW

Name:Turbocharger GT1749V Turbo 7701472775

Item name:7701472775

Cooled Type:Oil cooled

Build/Year:2001-2006

Capacity:1870-1990 ccm

Fuel Type:Diesel

Net Weight:5kg

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Application:

Mitsubishi Space Star 1.9 DI-D Mitsubishi Carisma 1.9 DI-DHP Nissan Primera 1.9 DCI Renault Espace III 1.9 dCi Renault Espace IV 1.9 dCi Renault Laguna II 1.9 dCi Renault Megane II 1.9 DCI Renault Scenic II 1.9 Dci Volvo-PKW V40 1.9D Volvo-PKW S40 I 1.9 D

Product Description:

Turbocharger GT1749V Turbo For Mitsubishi/ Nissan/ Renault/ Volvo 7701472775



TBS No.
TBS-0011 Related Part No. Application For
OEM No. 708639-5010S 708639-5010S
708639-9010S
708639-5007S
708639-0006
708639-0005
708639-0004
708639-0002/3
AR0121
8200369581
8200332125
8200110519-A
8200110519
8200256077
7711368748
14411-AW301
14411AW301
14411-00Q0E
1441100Q0E
14411AW300
1441100Q0K
14411-AW300
14411-00Q0K
8200381645
7711135749
7701474960
7701477263
8200683855
8200544912
8200114015
7701472775
7701473526
7711135336
8602254
8602872
8603688
36000721
Mitsubishi Space Star 1.9 DI-D
Mitsubishi Carisma 1.9 DI-DHP
Nissan Primera 1.9 DCI
Renault Espace III 1.9 dCi
Renault Espace IV 1.9 dCi
Renault Laguna II 1.9 dCi
Renault Megane II 1.9 DCI
Renault Scenic II 1.9 Dci
Volvo-PKW V40 1.9D
Volvo-PKW S40 I 1.9 D
Turbo Model GT1749V
Engine Code F9Q/D4192T3
Cooled Type Oil Cooled
Power 115HP/120HP/88KW/85KW
Build/Year 2001-2006
Capacity 1870-1990 ccm
Fuel Type Diesel
Net Weight 5kg
Gross Weight 7kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001


Material Description
1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
