Product Name:

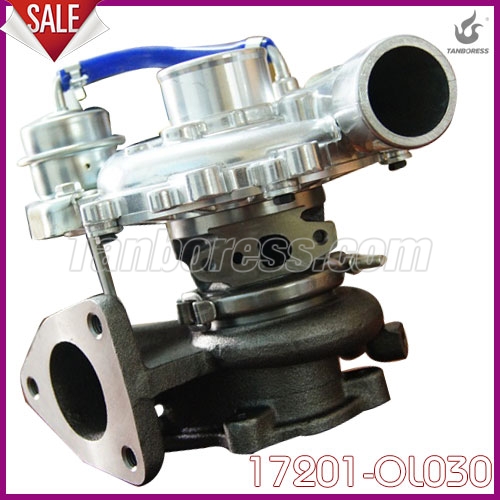

Turbocharger CT9 Turbo Charger For Toyota 17201-30030
Product Attribute:
Engine Model:FTV-2KD
Turbo Model:CT9
Engine Power:102kw
Size:OEMcm
G.W:8kg
Turbine Material:K18
Power:102kw
Displacement:OEMl
Name:Turbocharger CT16 Turbo Charger For Toyota 17201-30030
Item name:17201-30030
Cooled Type:Water cooled
Build/Year:2001-2007
Capacity:2.5 L
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7kg
Application:
Toyota Hiace Toyota Hi-Lux
Product Description:
Turbocharger CT9 Turbo Charger For Toyota 17201-30030
TBS No. |
TBS-0153 |
Related Part No. |
Application For |
|
Turbo OEM No. |
17201-30030 |
17201-30030
1720130030
17201-30120
1720130120 |
Toyota Hiace 2.5 D4D
Toyota Hilux 2.5 D4D |
|
CHRA OEM No. |
17201-30030 |
|
Turbo Model |
CT9 |
|
Engine Code |
2KD-FTV |
|
Cooled Type |
Water cooled |
|
Power |
102HP |
|
Build/Year |
2001 |
|
Capacity |
2495ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
|
|
Gross Weight |
|
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
