Product Name:

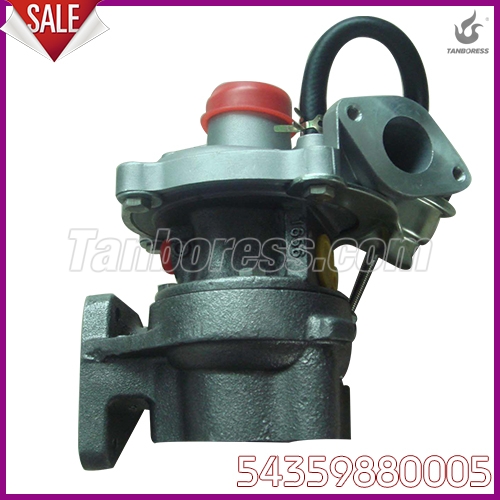

Turbocharger KP35 Turbo Charger For Citroen Fiat Lancia Opel Peugeot 73501343
Product Attribute:
Engine Model:1.3 HDI 75 Multijet Z13DTJ 16V
Turbo Model:KP35
Engine Power:69/ 75kw
Size:OEMcm
G.W:5kg
Turbine Material:K18
Power:69/ 75kw
Displacement:OEMl
Name:Turbocharger KP35 Turbo Charger For Citroen 73501343
Item name:73501343
Cooled Type:Oil cooled
Build/Year:2003-2010
Capacity:1248 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:4kg
Application:
Citroen Nemo 1.3 HDi 75 Fiat Doblo 1.3 JTD Fiat Fiorino III 1.3 Multijet 16V Fiat Idea 1.3 JTD Fiat Panda 1.3 JTD Fiat Punto II 1.3 JTD Fiat Qubo 1.3 JTD Lancia Musa 1.3 Lancia Ypsilon 1.3 Multijet 16V) Opel Corsa D 1.3 CDTI Peugeot Bipper 1.3 HDi 75
Product Description:
Turbocharger KP35 Turbo Charger For Citroen Fiat Lancia Opel Peugeot 73501343
TBS No. |
TBS-0118 |
Related Part No. |
Application For |
|
OEM No. |
54359880005 |
54359880005
54359700005
54359710005
0375S1
1607371380
73501343
71784113
5860030
93191993 |
Citroen Nemo 1.3 HDi 75
Fiat Doblo 1.3 JTD
Fiat Fiorino III 1.3 Multijet 16V
Fiat Idea 1.3 JTD
Fiat Panda 1.3 JTD
Fiat Punto II 1.3 JTD
Fiat Qubo 1.3 JTD
Lancia Musa 1.3
Lancia Ypsilon 1.3 Multijet 16V)
Opel Corsa D 1.3 CDTI
Peugeot Bipper 1.3 HDi 75 |
|
Turbo Model |
KP35 |
|
Engine Code |
1.3 HDI 75 Multijet Z13DTJ 16V |
|
Cooled Type |
Oil cooled |
|
Power |
69HP 75HP |
|
Build/Year |
2003-2010 |
|
Capacity |
1248 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
4kg |
|
Gross Weight |
5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
