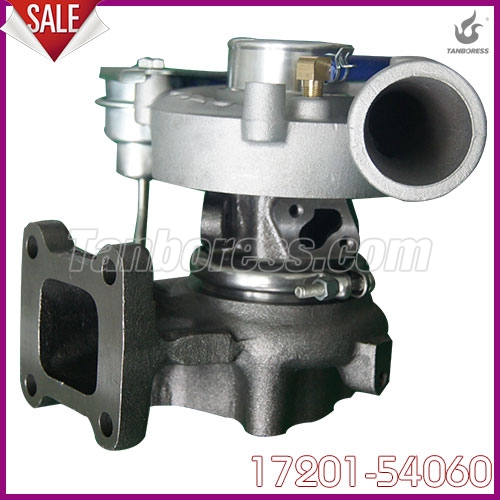

Turbocharger CT20 Turbo Charger For Toyota 17201-54060

Product Name:

Turbocharger CT20 Turbo Charger For Toyota 17201-54060

Product Attribute:

Engine Model:2L-T

Turbo Model:CT20

Engine Power:209 210 225kw

Size:OEMcm

G.W:9kg

Turbine Material:K18

Power:209 210 225kw

Displacement:OEMl

Name:Turbocharger CT20 Turbo Charger For Toyota 17201-54060

Item name:17201-54060

Cooled Type:Water cooled

Build/Year:1990-1998

Capacity:2429ccm 2446ccm

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:7.3KG

Application:

Toyota Hilux 2.4 TD (LN (RNZ) Toyota Hiace 2.5TD (H12) Toyota Landcruiser TD ( LJ70, 71, 73))

Product Description:

Turbocharger CT20 Turbo Charger For Toyota 17201-54060

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
