Product Name:

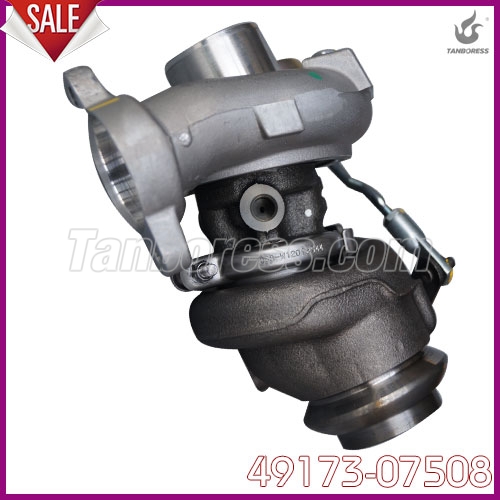

Turbocharger TD025S2-06T4 Turbo Charger For Citroen Ford Peugeot 9657530580
Product Attribute:
Engine Model:DV6B/DV6ATED4/DV6UTED4/HHDA
Turbo Model:TD025S2-06T4
Engine Power:90kw
Size:OEMcm
G.W:4kg
Turbine Material:K18
Power:90kw
Displacement:OEMl
Name:Turbocharger TD025S2-06T4 Turbo Charger For Citroen 9657530580
Item name:9657530580
Cooled Type:Oil cooled
Build/Year:2005-2007
Capacity:1560 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:3KG
Application:
Citroen Berlingo 1.6 Hdi Citroen C 3 1.6 Hdi Citroen C 4 1.6 HDi Citroen Jumpy 1.6 HDi Citroen Xsara 1.6 Hdi Ford Fiesta Ford Focus Ford Fusion 1.6 TDCi Peugeot 207 1.6 Hdi Peugeot 307 1.6 Hdi Peugeot 308 1.6 HDi FAP Peugeot Expert 1.6 HDi FAP Peugeot Partner 1.6 Hdi
Product Description:
Turbocharger TD025S2-06T4 Turbo Charger For Citroen Ford Peugeot 9657530580
TBS No. |
TBS-0228 |
Related Part No. |
Application For |
|
OEM No. |
49173-07508 |
49173-07508
49173-07507
49173-07506
49173-07504
49173-07503
49173-07502
4917307502
49173-07522
49173-07516
0375N5
0375J0
0375Q5
0375Q4
0375K5
9657530580
9657603780
3M5Q-6K682-DE
1684949
9682881380
0375Q2
9662371080 |
Citroen Berlingo 1.6 Hdi
Citroen C 3 1.6 Hdi
Citroen C 4 1.6 HDi
Citroen Jumpy 1.6 HDi
Citroen Xsara 1.6 Hdi
Ford Fiesta
Ford Focus
Ford Fusion 1.6 TDCi
Peugeot 207 1.6 Hdi
Peugeot 307 1.6 Hdi
Peugeot 308 1.6 HDi FAP
Peugeot Expert 1.6 HDi FAP
Peugeot Partner 1.6 Hdi |
|
Turbo Model |
TD025S2-06T4 |
|
Engine Code |
DV6B/DV6ATED4/DV6UTED4/HHDA |
|
Cooled Type |
Oil cooled |
|
Power |
90HP |
|
Build/Year |
2005-2007 |
|
Capacity |
1560 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
3kg |
|
Gross Weight |
4kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
