Product Name:

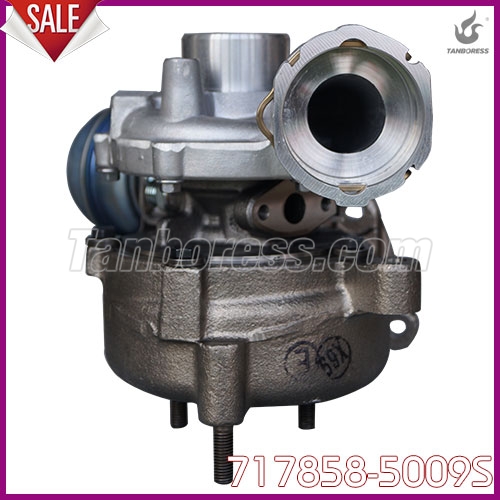

Turbocharger GT1749V Turbo Charger For Audi Skoda Volkswagen 717858-0008
Product Attribute:
Engine Model:AFV/AWX/AVF/BPW/BGW
Turbo Model:GT1749V
Engine Power:130 136 140kw
Size:OEMcm
G.W:8.5kg
Turbine Material:K18
Power:130 136 140kw
Displacement:OEMl
Name:Turbocharger GT1749V Turbo Charger For Audi 717858-0008
Item name:717858-0008
Cooled Type:Oil cooled
Build/Year:2000-2008
Capacity:1896 ccm/1968 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7kg
Application:
Audi A4 1.9 TDI (B6) Audi A4 2.0 TDI (B7) Audi A6 1.9 TDI (C5) Skoda Superb I 1.9 TDI Volkswagen Passat B5 1.9 TDI Volkswagen Passat B6 2.0 TDI
Product Description:
Turbocharger GT1749V Turbo Charger For Audi Skoda Volkswagen 717858-0008
TBS No. |
TBS-0173 |
Related Part No. |
Application For |
|
OEM No. |
717858-5009S |
717858-5009S
717858-9009S
717858-5010S
717858-5008S
717858-0007
717858-0005
717858-0004
717858-0003
717858-0002
038145702G
038145702GX
038145702GV
038145702E
038145702J
038145702N
712077-0001
716215-0001
717858-0001
717858-0006
717858-0008
717858-5007S
717858-0009
038145702EV110
038145702GV105
038145702GV500
038145702GV505
038145702GV550
038145702 |
Audi A4 1.9 TDI (B6)
Audi A4 2.0 TDI (B7)
Audi A6 1.9 TDI (C5)
Skoda Superb I 1.9 TDI
Volkswagen Passat B5 1.9 TDI
Volkswagen Passat B6 2.0 TDI |
|
Turbo Model |
GT1749V |
|
Engine Code |
AFV/AWX/AVF/BPW/BGW |
|
Cooled Type |
Oil cooled |
|
Power |
130HP / 136HP/140HP |
|
Build/Year |
2000-2008 |
|
Capacity |
1896 ccm/1968 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
7kg |
|
Gross Weight |
8.5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
