Product Name:

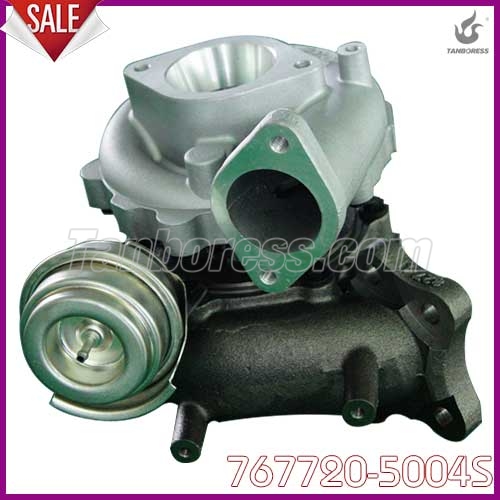

Turbocharger GT2056V Turbo Charger For Nissan 14411-EB70A
Product Attribute:
Engine Model:YD25
Turbo Model:GT2056V
Engine Power:171kw
Size:OEMcm
G.W:9kg
Turbine Material:K18
Power:171kw
Displacement:OEMl
Name:Turbocharger GT2056V Turbo Charger For Nissan 14411-EB70A
Item name:14411-EB70A
Cooled Type:Water Cooled
Build/Year:2006-2007
Capacity:2500 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7kg
Application:
Nissan Navara 2.5 DI Nissan Navara 2.5 TD Nissan Pathfinder 2.5 TD
Product Description:
Turbocharger GT2056V Turbo Charger For Nissan 14411-EB70A
TBS No. |
TBS-0861 |
Related Part No. |
Application For |
|
OEM No. |
767720-5004S |
767720-5004S
767720-0004
767720-0002
767720-0001
14411-EB70C
14411-EB70B
14411-EB70A
14411EB70C
14411EB70B
14411EB70A
14411EB70D
767720-5002S
14411-EB70D
769708-5004S
769708-0003
769708-0002
769708-0001
14411EC00E
14411EC00C
14411EC00B
14411-EC00B
14411-EC00C
14411-EC00E
769708-0004
769708-5003S
14411ECOOC |
Nissan Navara 2.5 DI
Nissan Navara 2.5 TD
Nissan Pathfinder 2.5 TD |
|
Turbo Model |
GT2056V |
|
Engine Code |
YD25 |
|
Cooled Type |
Water Cooled |
|
Power |
171HP |
|
Build/Year |
2006-2007 |
|
Capacity |
2500 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
7kg |
|
Gross Weight |
9kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
