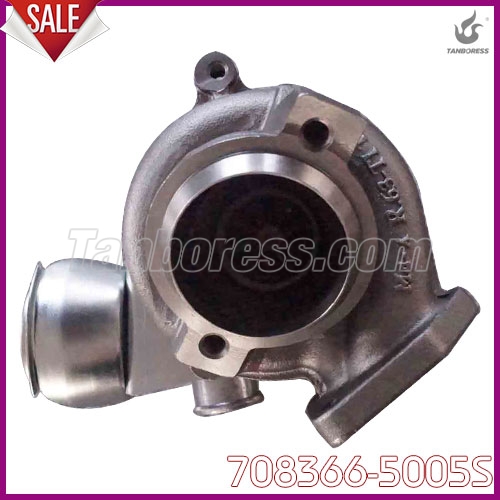

Turbocharger GT1749V Turbo Charger For Land 708366-0003

Turbocharger GT1749V Turbo Charger For Land 708366-0003
Turbocharger GT1749V Turbo Charger For Land 708366-0003
Previous
Next
OEM No/Model:

708366-0003

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger GT1749V Turbo Charger For Land 708366-0003

Product Attribute:

Engine Model:M47D

Turbo Model:GT1749V

Engine Power:112kw

Size:OEMcm

G.W:7kg

Turbine Material:K18

Power:112kw

Displacement:OEMl

Name:Turbocharger GT1749V Turbo Charger For Land 708366-0003

Item name:708366-0003

Cooled Type:Oil cooled

Build/Year:2000

Capacity:2000ccm

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:6kg

Application:

Land-Rover Freelander I 2.0 Td4

Product Description:

Turbocharger GT1749V Turbo Charger For Land 708366-0003


TBS No.
TBS-0684 Related Part No. Application For
OEM No. 708366-5005s 708366-5005s
708366-9005S
708366-0003
708366-0002
708366-0001
7781450B
7781475.9
7781476.9
708366-5002S
77814769
77814759
7781450C03
7781475C03
7781476C03
STC4546
LR006108
LR008839
STC4547
Land-Rover Freelander I 2.0 Td4
Turbo Model GT1749V
Engine Code M47D
Cooled Type Oil cooled
Power 112HP
Build/Year 2000
Capacity 2000ccm
Fuel Type Diesel
Net Weight 6kg
Gross Weight 7kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001
Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)
