Product Name:

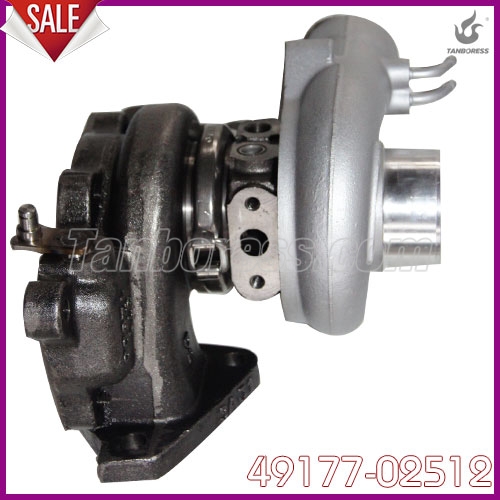

Turbocharger TD04-11G-4 Turbo Charger For Mitsubishi Hyundai 28200-42540
Product Attribute:
Engine Model:D4BH 4D56Q 4D56TD 4D56TI
Turbo Model:TD04-11G-4
Engine Power:99/100kw
Size:OEMcm
G.W:7kg
Turbine Material:K18
Power:99/100kw
Displacement:OEMl
Name:Turbocharger TD04-11G-4 Turbo Charger For Mitsubishi 28200-42540
Item name:28200-42540
Cooled Type:Oil and Water cooled
Build/Year:1990-1998
Capacity:2476 ccm 2477ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:5kg
Application:
Mitsubishi Galloper TCI Misubishi L 200 2.5 TD 4*4 (K6_T) Hyundai Gallopper 2.5 TDI Mitsubishi Pajero II 2.5 TD Hyundai H-1 2.5 TD Mitsubishi L 200 Hyundai Commercial Vehicle Starex H1
Product Description:
Turbocharger TD04-11G-4 Turbo Charger For Mitsubishi Hyundai 28200-42540
|
TBS No. |
TBS-0014 |
Related Part No. |
Application For |
|
OEM No. |
49177-02512 |
49177-02512
28200-42540
49177-00401
49177-01502
49177-01503
49177-01504
49177-01505
49177-01513
49177-01515
49177-02502
MR355225
49177-07612
49177-02513
MD194845
49377-05100
MD194843
MR355222
49177-02500
49177-02501
MD187208
MD170563
2820042540
49135-02110
MR212759
MR355223
49135-02100
MR224978
MR323776
49135-02400
MR481673
49135-02600
MR571732
49135-02200
49135-04020
28200-4A200
282004A200
730640-5001S
730640-0001 |
Mitsubishi Galloper TCI
Misubishi L 200 2.5 TD 4*4 (K6_T)
Hyundai Gallopper 2.5 TDI
Mitsubishi Pajero II 2.5 TD
Hyundai H-1 2.5 TD
Mitsubishi L 200
Hyundai Commercial Vehicle Starex H1 |
|
Turbo Model |
TD04-11G-4 |
|
Engine Code |
D4BH 4D56Q 4D56TD 4D56TI |
|
Cooled Type |
Oil and Water cooled |
|
Power |
99HP 100HP |
|
Build/Year |
1990-1998 |
|
Capacity |
2476 ccm 2477ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
5kg |
|
Gross Weight |
7kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
1. Compressor Housing : ZL 101 Cast aluminumMaterial Description
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
