Product Name:

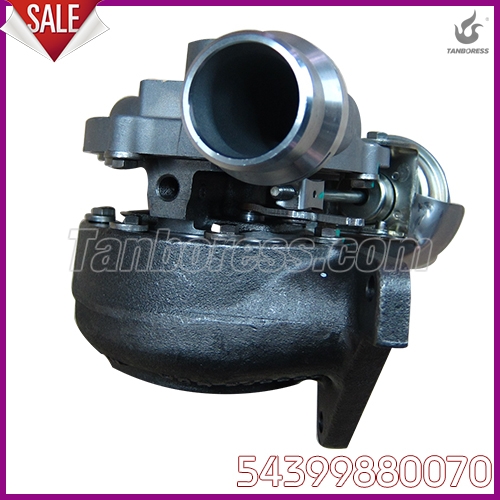

Turbocharger BV39/KP39 Turbo Charger For Nissan Renault 8200405203
Product Attribute:
Engine Model:K9K
Turbo Model:BV39/KP39
Engine Power:103/106kw
Size:OEMcm
G.W:7kg
Turbine Material:K18
Power:103/106kw
Displacement:OEMl
Name:Turbocharger BV39/KP39 Turbo Charger For Nissan Renault 8200405203
Item name:8200405203
Cooled Type:Oil cooled
Capacity:1461 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:6kg
Build/Year:2004-2010
Application:
Nissan Qashiqai 1.5 DCI Renault Clio III 1.5 DCI Renault Megane II 1.5 DCI Renault Modus 1.5 DCI Renault Scenic II 1.5 DCI
Product Description:
Turbocharger BV39/KP39 Turbo Charger For Nissan Renault 8200405203
|
TBS No. |
TBS-0024 |
Related Part No. |
Application For |
|
OEM No. |
54399880070 |
54399880070
54399880030
54399700030
54399700070
14411-00Q0F
54399980070
8200405203
8200507856
7701476183
8200625683
7711368560
8200578381
7701476883
1441100Q0F |
Nissan Qashiqai 1.5 DCI
Renault Clio III 1.5 DCI
Renault Megane II 1.5 DCI
Renault Modus 1.5 DCI
Renault Scenic II 1.5 DCI |
|
Turbo Model |
BV39/KP39 |
|
Engine Code |
K9K |
|
Cooled Type |
Oil cooled |
|
Power |
103 HP 106HP |
|
Build/Year |
2004-2010 |
|
Capacity |
1461 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
6kg |
|
Gross Weight |
7kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
1. Compressor Housing : ZL 101 Cast aluminumMaterial Description
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
