Product Name:

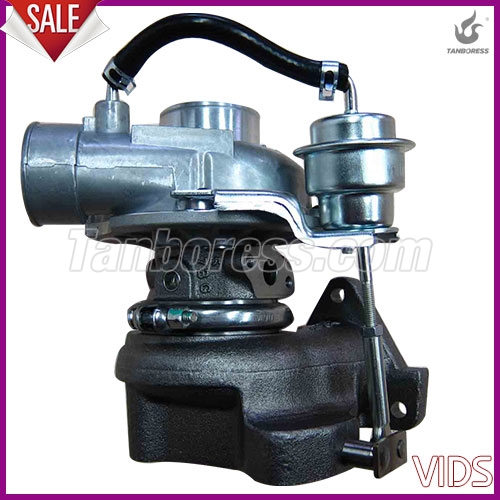

Turbocharger RHF5 Turbo Charger For Opel Isuzu 8971371093
Product Attribute:
Engine Model:4JX1TC 4JX1
Turbo Model:RHF5
Engine Power:159kw
Size:OEMcm
G.W:9kg
Turbine Material:K18
Power:159kw
Displacement:OEMl
Name:Turbocharger RHF5 Turbo Charger For Opel Isuzu 8971371093
TAG:8971371093
Cooled Type:Water cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:8kg
Build/Year:2001-2003
Capacity:2999 ccm 3000 ccm
Application:
Opel Monterey B 3.0 DTI Isuzu Trooper
Product Description:
Turbocharger RHF5 Turbo Charger For Opel Isuzu 8971371093
TBS No. |
TBS-0042 |
Related Part No. |
Application For |
|
OEM No. |
VIDS |
VIDS
VA430070
VICF
VF430015
860001
8971371097
VA430015
VB430015
VC430015
VE430015
8971371093
8971371094
8971371095
8971371098
VG430015
VH430015
VI430015
VJ430015
VL430015
8972503642
8972503640
8971371099
8972503641
860065
98102371
97376273
897376273
8-97137-109-3
8-97137-109-4
8-97137-109-5
8-97137-109-7
8-97137-109-8 |
Opel Monterey B 3.0 DTI
Isuzu Trooper |
|
Turbo Model |
RHF5 |
|
Engine Code |
4JX1TC 4JX1 |
|
Cooled Type |
Water cooled |
|
Power |
159HP |
|
Build/Year |
2001-2003 |
|
Capacity |
2999 ccm 3000 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
8kg |
|
Gross Weight |
9kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
