Product Name:

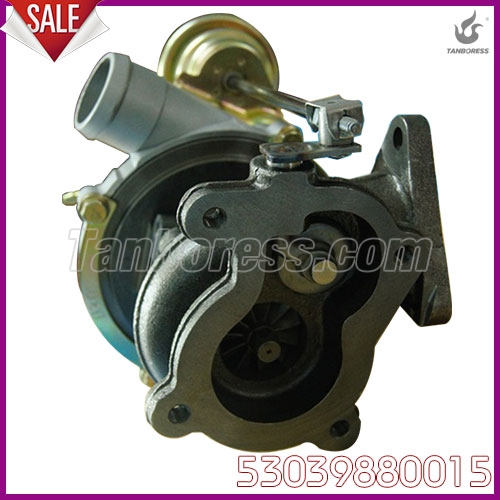

Turbocharger K03 Turbo Charger For Audi Skoda Volkswagen 038145701D
Product Attribute:
Engine Model:AGR
Turbo Model:K03
Engine Power:90kw
Size:OEMcm
G.W:5kg
Turbine Material:K18
Power:90kw
Displacement:OEMl
Name:Turbocharger K03 Turbo Charger For Audi Skoda Volkswagen 038145701D
TAG:038145701D
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:3.5kg
Capacity:1896 ccm
Build/Year:1996-2001
Application:
Audi A3 1.9 TDI (8L) Skoda Octavia I 1.9 TDI Volkswagen Bora 1.9 TDI Volkswagen Golf IV 1.9 TDI
Product Description:
Turbocharger K03 Turbo Charger For Audi Skoda Volkswagen 038145701D
TBS No. |
TBS-0120 |
Related Part No. |
Application For |
|
OEM No. |
53039880015 |
53039880015
53039700015
454159-0002
454159-0001
038145701A
038145701AX
038145701AV
038145701D |
Audi A3 1.9 TDI (8L)
Skoda Octavia I 1.9 TDI
Volkswagen Bora 1.9 TDI
Volkswagen Golf IV 1.9 TDI |
|
Turbo Model |
K03 |
|
Engine Code |
AGR |
|
Cooled Type |
Oil cooled |
|
Power |
90HP |
|
Build/Year |
1996-2001 |
|
Capacity |
1896 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
3.5kg |
|
Gross Weight |
5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
