Product Name:

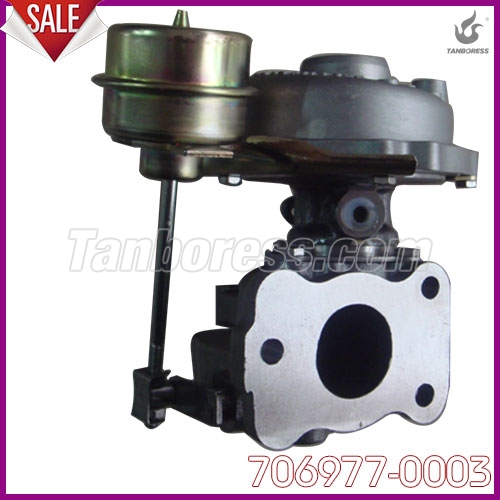

Turbocharger K03 Turbo Charger For Citroen Peugeot 0375E3
Product Attribute:
Engine Model:DW10TD
Turbo Model:K03
Engine Power:90kw
Size:OEMcm
G.W:7kg
Turbine Material:K18
Power:90kw
Displacement:OEMl
Name:Turbocharger K03 Turbo Charger For Citroen Peugeot 0375E3
Item name:0375E3
Cooled Type:Oil cooled
Capacity:1997 ccm 2000 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:6kg
Build/Year:1999-2001
Application:
Citroen Berlingo 2.0 HDI Citroen C 5 I 2.0 HDI Citroen Picasso 2.0 HDI Citroen Xantia 2.0 HDi Citroen Xsara 2.0 HDI Peugeot 206 2.0 HDi Peugeot 206 2.0 HD Peugeot 307 2.0 HDi Peugeot 406 2.0 HDI Peugeot Partner 2.0 HDi
Product Description:
Turbocharger K03 Turbo Charger For Citroen Peugeot 0375E3
|
TBS No. |
TBS-0127 |
Related Part No. |
Application For |
|
OEM No. |
706977-0003 |
53039880009
VVP1
VF40A104
0375C8
0375E3
0375E1
0375E0
0375H7
706977-0003
706977-0001 |
Citroen Berlingo 2.0 HDI
Citroen C 5 I 2.0 HDI
Citroen Picasso 2.0 HDI
Citroen Xantia 2.0 HDi
Citroen Xsara 2.0 HDI
Peugeot 206 2.0 HDi
Peugeot 206 2.0 HD
Peugeot 307 2.0 HDi
Peugeot 406 2.0 HDI
Peugeot Partner 2.0 HDi |
|
Turbo Model |
K03 |
|
Engine Code |
DW10TD |
|
Cooled Type |
Oil cooled |
|
Power |
90HP |
|
Build/Year |
1999-2001 |
|
Capacity |
1997 ccm 2000 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
6kg |
|
Gross Weight |
7kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
1. Compressor Housing : ZL 101 Cast aluminumMaterial Description
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
