Product Name:

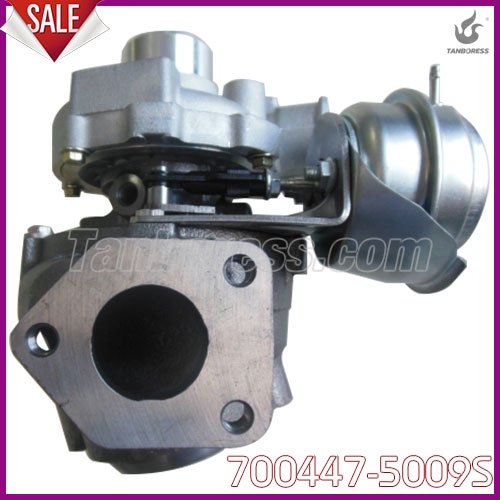

Turbocharger GT1549V Turbo Charger For BMW 700447-0004
Product Attribute:
Engine Model:M47D E46/E39
Turbo Model:GT1549V
Engine Power:122 136kw
Size:OEMcm
G.W:8kg
Turbine Material:K18
Power:122 136kw
Displacement:OEMl
Name:Turbocharger GT1549V Turbo Charger For BMW 700447-0004
TAG:700447-0004
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:6kg
Capacity:1951ccm
Build/Year:1998
Application:
BMW 318 d ( E46) BMW 320 d ( E46) BMW 520 d ( E39)
Product Description:
Turbocharger GT1549V Turbo Charger For BMW 700447-0004
TBS No. |
TBS-0159 |
Related Part No. |
Application For |
|
OEM No. |
700447-5009S |
700447-5009S
700447-9008S
700447-5008S
700447-5007S
700447-0006
700447-0005
700447-0004
700447-0003
11652248901
11652248905
11652247297
700447-0008
700447-0002
700447-0007
2247297F
2247297G
2247297H
2247901H
2247905H
2248901G
2248905G
11652247297F
11652247297G
11652247297H
11652247901H
11652247905H
11652248901G
11652248905G
2247901104
11652247901104 |
BMW 318 d ( E46)
BMW 320 d ( E46)
BMW 520 d ( E39) |
|
Turbo Model |
GT1549V |
|
Engine Code |
M47D E46/E39 |
|
Cooled Type |
Oil cooled |
|
Power |
122HP 136HP |
|
Build/Year |
1998 |
|
Capacity |
1951ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
6kg |
|
Gross Weight |
8kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
