Product Name:

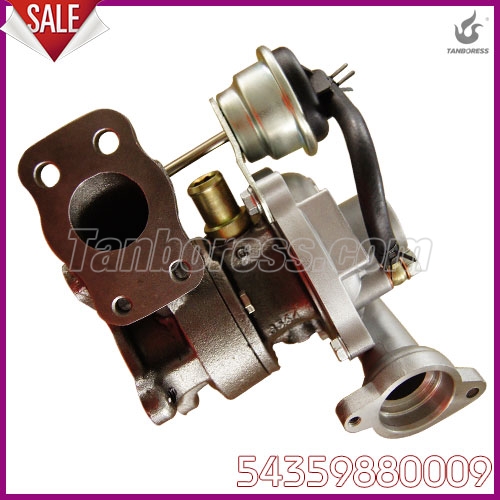

Turbocharger KP35 Turbo Charger For Citroen Ford Mazda Peugeot 1348618
Product Attribute:
Engine Model:DV4TD
Turbo Model:KP35
Engine Power:50kw
Size:OEMcm
G.W:5kg
Turbine Material:K18
Power:50kw
Displacement:OEMl
Name:Turbocharger KP35 Turbo Charger For Citroen Peugeot 1348618
Item name:1348618
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Build/Year:2002-2008
Capacity:1398ccm
Net Weight:4kg
Application:
Citroen C1 1.4 Hdi Citroen C2 1.4 Hdi Citroen C3 1.4 Hdi Citroen Xsara 1.4 Hdi Ford Fiesta VI 1.4 TD Ci Ford Fusion 1.4 TDCI Mazda 2 1.4 MZ-CD Peugeot 1007 1.4 HDi Peugeot 107 1.4 HDi Peugeot 206 1.4 HDi Peugeot 207 1.4 HDi Peugeot 307 1.4 HDi
Product Description:
Turbocharger KP35 Turbo Charger For Citroen Ford Mazda Peugeot 1348618
|
TBS No. |
TBS-0230 |
Related Part No. |
Application For |
|
OEM No. |
54359880009 |
54359880009
54359880007
54359880001
54359700009
54359700007
54359700001
0375G9
0375K0
2S6Q6K682AB
2S6Q6K682AA
2S6Q6K682AD
2S6Q6K682AC
1219456
1488986
1348618
Y401-13-700B
Y40113700B
9648759980
9643574980
9643675880 |
Citroen C1 1.4 Hdi
Citroen C2 1.4 Hdi
Citroen C3 1.4 Hdi
Citroen Xsara 1.4 Hdi
Ford Fiesta VI 1.4 TD Ci
Ford Fusion 1.4 TDCI
Mazda 2 1.4 MZ-CD
Peugeot 1007 1.4 HDi
Peugeot 107 1.4 HDi
Peugeot 206 1.4 HDi
Peugeot 207 1.4 HDi
Peugeot 307 1.4 HDi |
|
Turbo Model |
KP35 |
|
Engine Code |
DV4TD |
|
Cooled Type |
Oil cooled |
|
Power |
50KW/68 HP |
|
Build/Year |
2002-2008 |
|
Capacity |
1398ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
4KG |
|
Gross Weight |
5KG |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
