Product Name:

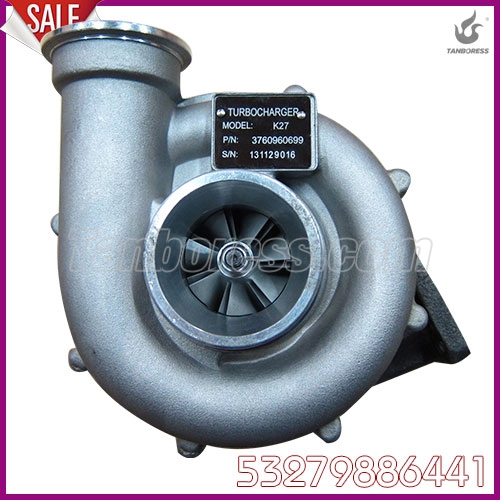

Turbocharger K27 Turbo Charger For Mercedes 3660962699
Product Attribute:
Engine Model:OM 366 A
Turbo Model:K27
Engine Power:127kw
Size:OEMcm
G.W:13kg
Turbine Material:K18
Power:127kw
Displacement:OEMl
Name:Turbocharger K27 Turbo Charger For Mercedes 3660962699
Item name:3660962699
Cooled Type:Oil cooled
Build/Year:1985-2007
Capacity:5960ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:12 kg
Application:
Mercedes-LKW OM 366 A
Product Description:
Turbocharger K27 Turbo Charger For Mercedes 3660962699
|
TBS No. |
TBS-0409 |
Related Part No. |
Application For |
|
OEM No. |
53279886441 |
53279886441
465366-0009
3660960899
3660960299
3660961399
310769
313050
53279886440
3760960699
A3760960699
3520964299
3520965199
3520965299
3520965399
3520966899
3660960999
3660960699
3660961099
A3520964299
A3520965199
A3520965299
A3520965399
A3520966899
A3660960299
A3660960699
A3660961099
A3660960999
3660961499
A3660961499
A3660960899
3660962299
3660961599
3660962699
A3660962299
A3660961599
A3660962699
53279706441
53279706440
53279736441
53279716441
53279746441
53279726441
53279776441
53279756441 |
Mercedes-LKW OM 366 A |
|
Turbo Model |
K27 |
|
Engine Code |
OM 366 A |
|
Cooled Type |
Oil cooled |
|
Power |
172HP |
|
Build/Year |
1985-2007 |
|
Capacity |
5960ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
12KG |
|
Gross Weight |
13KG |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
