Product Name:

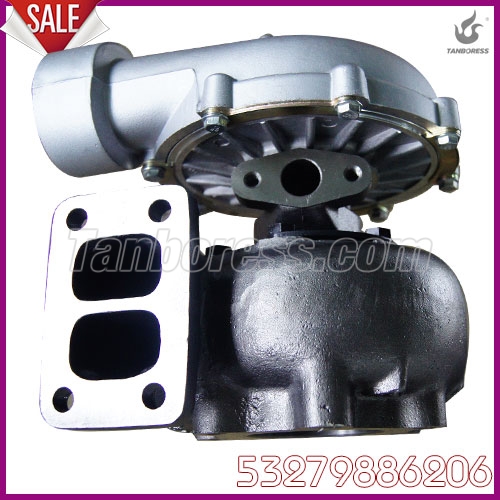

Turbocharger K27 Turbo Charger For Mercedes 0020960399
Product Attribute:
Engine Model:OM 422 A/LA
Turbo Model:K27
Engine Power:330/350/354/375 HPkw
Size:OEMcm
G.W:13kg
Turbine Material:K18
Power:330/350/354/375 HPkw
Displacement:OEMl
Name:Turbocharger K27 Turbo Charger For Mercedes 0020960399
Item name:0020960399
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Capacity:14700ccm
Net Weight:12kg
Build/Year:1987-2002
Application:
Mercedes-LKW OM 422 A (LA)
Product Description:
Turbocharger K27 Turbo Charger For Mercedes 0020960399
|
TBS No. |
TBS-0404 |
Related Part No. |
Application For |
|
OEM No. |
53279886206 |
53279886206
53279886011
53279886016
53279886201
53279886203
0030965599
0030962699
0020964499
0020960299
0020965199
0020960399
0030962799
0030962599
0030962199
0020966699
0030965399
311703
313163
0030965599KZ
30965399
30965499
90961999
A0030965599
A0030965399
A0030965499
A0090961999
0030962299
0030962099
A0030962299
A0030962199
A0030962099 |
Mercedes-LKW OM 422 A/LA |
|
Turbo Model |
K27 |
|
Engine Code |
OM 422 A/LA |
|
Cooled Type |
Oil cooled |
|
Power |
330/350/354/375 HP |
|
Build/Year |
1987-2002 |
|
Capacity |
14700ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
12kg |
|
Gross Weight |
13kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
