Product Name:

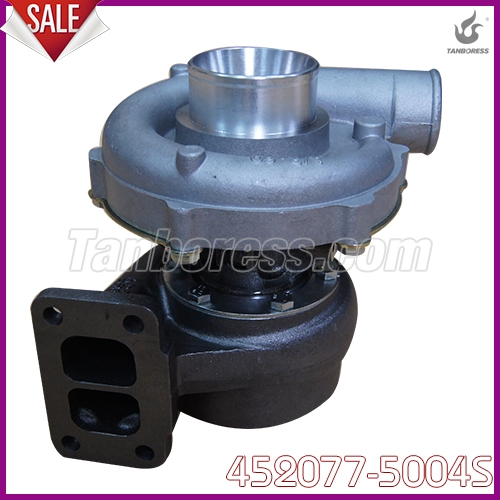

Turbocharger TO4E35 / TO4E / T04E Turbo Charger For Perkins 452077-5004S
Product Attribute:
Engine Model:1006.6THR3
Turbo Model:TO4E35 / TO4E / T04E
Engine Power:109kw
Size:OEMcm
G.W:10kg
Turbine Material:K18
Power:109kw
Displacement:OEMl
Name:Turbocharger TO4E35 / TO4E / T04E Turbo Charger For Perkins 452077-500
Item name:452077-5004S
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:9kg
Capacity:6000 ccm
Application:
Perkins Generator
Product Description:
Turbocharger TO4E35 / TO4E / T04E Turbo Charger For Perkins 452077-5004S
|
TBS No. |
TBS-0428 |
Related Part No. |
Application For |
|
OEM No. |
452077-5004S |
452077-5004S
452077-0004
452077-4
2674A080 |
Perkins Generator |
|
Turbo Model |
TO4E35 / TO4E / T04E |
|
Engine Code |
1006.6THR3 |
|
Cooled Type |
Oil cooled |
|
Power |
109HP |
|
Build/Year |
|
|
Capacity |
6000 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
9KG |
|
Gross Weight |
10KG |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
