Product Name:

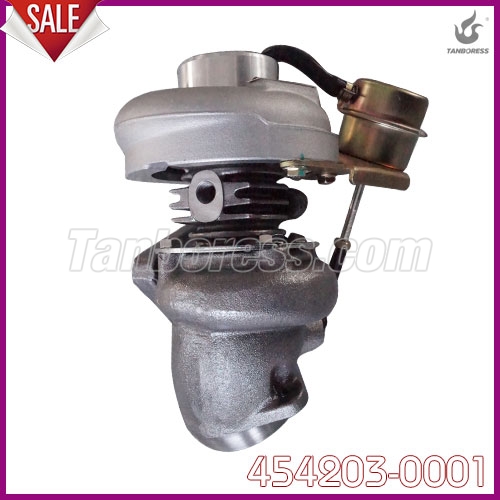

Turbocharger GT25C Turbo Charger For Mercedes A6050900280
Product Attribute:
Engine Model:OM605.960 5 Zyl. OM 605 5 Zyl. OM602.983 5 Zyl.
Turbo Model:GT25C
Engine Power:150kw
Size:OEMcm
G.W:17kg
Turbine Material:K18
Power:150kw
Displacement:OEMl
Name:Turbocharger GT25C Turbo Charger For Mercedes A6050900280
Item name:A6050900280
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:16kg
Capacity:2497ccm 2874ccm
Build/Year:1995-2001
Application:
Mercedes-PKW C-Klasse 250 TD (W202) Mercedes-PKW E-Klasse 250 TD (W210) Mercedes-PKW G-Klasse 290 TD (W461)
Product Description:
-
Turbocharger GT25C Turbo Charger For Mercedes A6050900280
|
TBS No. |
TBS-0400 |
Related Part No. |
Application For |
|
OEM No. |
454203-0001 |
454203-0001
6050960499
6050900280
A6050960499
A6050900280
454203-5001S
454110-0001
6020961099 |
Mercedes-PKW C-Klasse 250 TD (W202)
Mercedes-PKW E-Klasse 250 TD (W210)
Mercedes-PKW G-Klasse 290 TD (W461) |
|
Turbo Model |
GT25C |
|
Engine Code |
OM605.960 5 Zyl. OM 605 5 Zyl. OM602.983 5 Zyl. |
|
Cooled Type |
Oil cooled |
|
Power |
150HP |
|
Build/Year |
1995-2001 |
|
Capacity |
2497ccm 2874ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
16kg |
|
Gross Weight |
17kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
