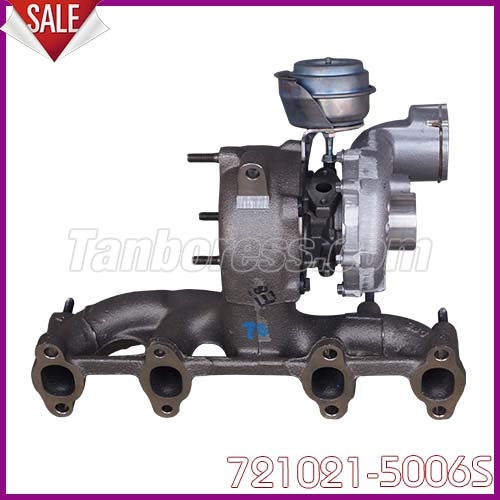

Turbocharger GT1749V Turbo Charger For Audi Seat Volkswagen 721021-0005

Turbocharger GT1749V Turbo Charger For Audi Seat Volkswagen 721021-0005
Turbocharger GT1749V Turbo Charger For Audi Seat Volkswagen 721021-0005
Previous
Next
OEM No/Model:

721021-0005

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger GT1749V Turbo Charger For Audi Seat Volkswagen 721021-0005

Product Attribute:

Engine Model:ARL

Turbo Model:GT1749V

Engine Power:150kw

Size:OEMcm

G.W:10kg

Turbine Material:K18

Power:150kw

Displacement:OEMl

Name:Turbocharger GT1749V Turbo Charger For Audi 721021-0005

Item name:721021-0005

Cooled Type:Oil cooled

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Capacity:1896ccm

Build/Year:1998-2005

Net Weight:8.5kg

Application:

Audi A3 1.9 TDI (8L) Seat Ibiza II 1.9 TDI Seat Leon 1.9 TDI Seat Toledo II 1.9 TDI Volkswagen Bora 1.9 TDI Volkswagen Golf IV 1.9 TDI

Product Description:

Turbocharger GT1749V Turbo Charger For Audi Seat Volkswagen 721021-0005



TBS No.
TBS-0136 Related Part No. Application For
OEM No. 721021-5006S 721021-5006S
721021-9006S
721021-0005
721021-0004
721021-0003
721021-0002
721021-0001
038253016G
038253016GX
038253016GV
03G253016R
721021-0006
721021-5005S
038253016GV500
038253016GV510
Audi A3 1.9 TDI (8L)
Seat Ibiza II 1.9 TDI
Seat Leon 1.9 TDI
Seat Toledo II 1.9 TDI
Volkswagen Bora 1.9 TDI
Volkswagen Golf IV 1.9 TDI
Turbo Model GT1749V
Engine Code ARL
Cooled Type Oil cooled
Power 150HP
Build/Year 1998-2005
Capacity 1896ccm
Fuel Type Diesel
Net Weight 8.5kg
Gross Weight 10kg
Volume 39*23*35
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001
Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)
