Product Name:

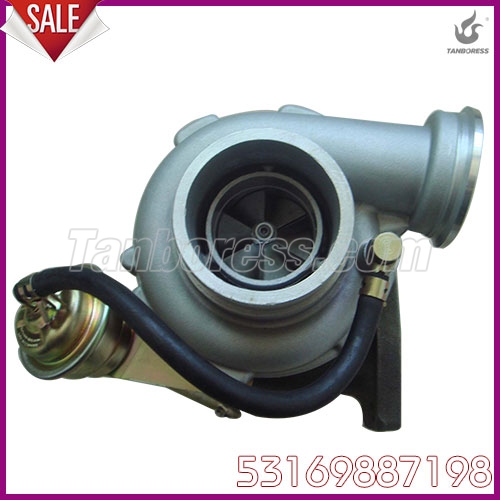

Turbocharger K16 Turbo Charger For Mercedes-Benz 9040964199
Product Attribute:
Engine Model:OM904LA-EPA/OM904LA-EPA98
Turbo Model:K16
Engine Power:135/142/183 HPkw
Size:OEMcm
G.W:10kg
Turbine Material:K18
Power:135/142/183 HPkw
Displacement:OEMl
Name:Turbocharger K16 Turbo Charger For Mercedes-Benz 9040964199
Item name:9040964199
Cooled Type:Oil cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Capacity:4.25L
Build/Year:1998-2007
Application:
Mercedes-Benz
Product Description:
-
Turbocharger K16 Turbo Charger For Mercedes-Benz 9040964199
|
TBS No. |
TBS-0710 |
Related Part No. |
Application For |
|
OEM No. |
53169887198 |
53169887198
53169887021
53169887025
53169887107
53169887119
53169887138
9040967199
A9040963599
9040969099
A9040969099
9000961099
A9000961099
9040964199
A9040964199
53169707119
53169707138
53169707025
53169707107
53169707021
53169707198 |
Mercedes-Benz |
|
Turbo Model |
K16 |
|
Engine Code |
OM904LA-EPA/OM904LA-EPA98 |
|
Cooled Type |
Oil cooled |
|
Power |
135/142/183 HP |
|
Build/Year |
1998-2007 |
|
Capacity |
4.25L |
|
Fuel Type |
Diesel |
|
Net Weight |
9kg |
|
Gross Weight |
10kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing:
-
1.Neutral Packing Or the package as requirement.
-
2.One turbo in a Carton.
-
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
