Product Name:

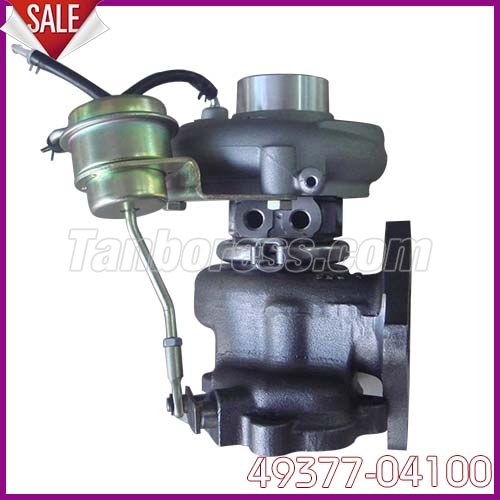

Turbocharger TD04L-13T Turbo Charger For Subaru 14412-AA360
Product Attribute:
Engine Model:EJ20/EJ25/41T/58T/44S
Turbo Model:TD04L-13T
Engine Power:211kw
Size:OEMcm
G.W:OEMkg
Turbine Material:K18
Power:211kw
Displacement:OEMl
Name:Turbocharger TD04L-13T Turbo Charger For Subaru 14412-AA360
TAG:14412-AA360
Cooled Type:Oil and Water cooled
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Capacity:2.0L/2.5L
Build/Year:1998-2007
Application:
Subaru Forester ( Impezza WRX)
Product Description:
Turbocharger TD04L-13T Turbo Charger For Subaru 14412-AA360
|
TBS No. |
TBS-0059 |
Related Part No. |
Application For |
|
OEM No. |
49377-04100 |
49377-04100
49377-04180
49377-04190
49377-04200
49377-04280
49377-04290
49377-04300
49377-04302
49377-04363
49377-04370
49377-04372
49377-04502
49377-04505
14412-AA140
14412-AA360
14412-AA560
14412AA140
14412AA151
14412AA231
14412AA261
14412AA360
14412AA382
14412AA383
14412AA451
14412AA501
14412AA560
14412AA562 |
Subaru Forester/ Impezza WRX |
|
Turbo Model |
TD04L-13T |
|
Engine Code |
EJ20/EJ25/41T/58T/44S |
|
Cooled Type |
Oil and Water cooled |
|
Power |
211HP |
|
Build/Year |
1998-2007 |
|
Capacity |
2.0L/2.5L |
|
Fuel Type |
Diesel |
|
Net Weight |
|
|
Gross Weight |
|
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
-
1. Compressor Housing : ZL 101 Cast aluminum
-
2. Turbine Housing : D-5S. Scope of heat-resistant950°
-
3. Bearing Housing : HT250 Gray iron
-
4. Compressor Wheel : ZL201 or C355 cast aluminums
-
5. Turbine Wheel : K18. Scope of heat-resistant950°
-
6. Turbine Shaft : 42CrMo
-
7. Floating Bearing : CW713R
-
8. Seal Ring : CrMoNiTi
-
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
-
1. Compressor Housing: Machining precision up to IT6 grades
-
2. Turbine Housing: Machining precision up to IT6 grades
-
3. Center Housing: Machining precision up to IT6 grades
-
4. Compressor Wheel: Accurate run-out, verticality and ovality
-
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing:
-
1.Neutral Packing Or the package as requirement.
-
2.One turbo in a Carton.
-
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
