Product Name:

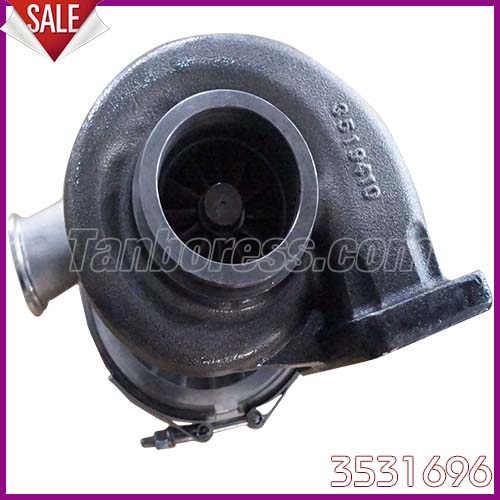

Turbocharger H1C Turbo Charger For DAF 3534098
Product Attribute:
Engine Model:6BTAA
Turbo Model:H1C
Engine Power:118kw
Size:OEMcm
G.W:11.5kg
Turbine Material:K18
Power:118kw
Displacement:OEMl
Name:Turbocharger H1C Turbo Charger For DAF 3534098
Item name:3531504
Cooled Type:Oil cooled
Fuel Type:Gasoline
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:10.5kg
Capacity:5900ccm
Application:
DAF Truck
Product Description:
Turbocharger H1C Turbo Charger For DAF 3534098
TBS No. |
TBS-1011 |
Related Part No. |
Application For |
|
OEM No. |
3531696 |
3531696
3531456
CBU1975
3531810
3802233
3802233RX
3802391
3802391RX
3531504
3534098
3535449
3536047
3536244
3536681 |
DAF Truck |
|
Turbo Model |
H1C |
|
Engine Code |
6BTAA |
|
Cooled Type |
Oil cooled |
|
Power |
118kw |
|
Build/Year |
|
|
Capacity |
5900ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
10.5kg |
|
Gross Weight |
11.5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
