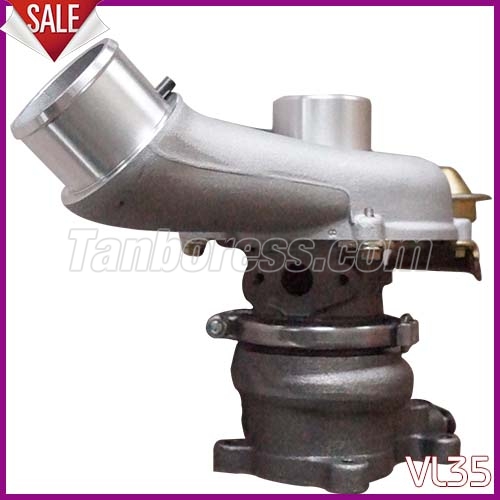

Turbocharger RHF4H Turbo Charger For Fiat VL35

Product Name:

Turbocharger RHF4H Turbo Charger For Fiat VL35

Product Attribute:

Engine Model:Multijet 8V

Turbo Model:RHF4H

Engine Power:100kw

Size:OEMcm

G.W:5.5kg

Turbine Material:K18

Power:100kw

Displacement:OEMl

Name:Turbocharger RHF4H Turbo Charger For Fiat VL35

Item name:VL35

Cooled Type:Oil cooled

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:4.5kg

Build/Year:2003-2007

Capacity:1900ccm

Application:

Fiat Doblo 1.9 JTD Fiat Idea 1.9 JTD Fiat Punto II 1.9 JTD

Product Description:

Turbocharger RHF4H Turbo Charger For Fiat VL35

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)
