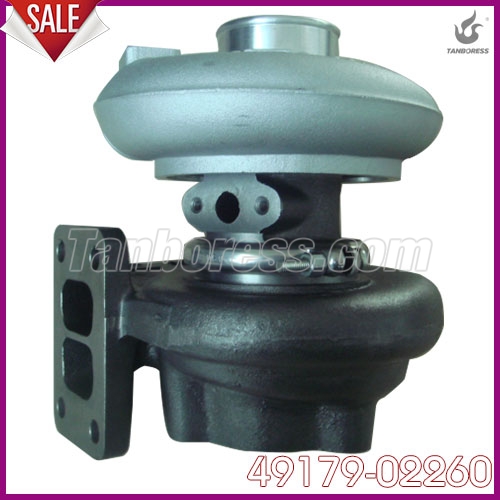

TD06H Turbocharger For Caterpillar Turbo Charger

Language Translator

TD06H Turbocharger For Caterpillar Turbo Charger - img2

TD06H Turbocharger For Caterpillar Turbo Charger - img3

TD06H Turbocharger For Caterpillar Turbo Charger - img4

TD06H Turbocharger For Caterpillar Turbo Charger - img5

OEM No/Model:	49179-02260
Minimum Order:	1Piece/Pieces
Export Ratio:	91% - 100%
Unit Price:	Hot Sale
Quality Certificate:	CE
Samples:	Charge
Place of Region:	China
Payment Terms:	L/C,T/T,paypal
Price Terms:	FOB
Delivery Port:	Dalian,Qingdao,Others
Delivery Time:	Within 7 Days After The Payment
Market Type:	After Market
Packing:	1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

TD06H Turbocharger For Caterpillar Turbo Charger

Product Attribute:

Engine Model:S6K, E320L, E120B/E110B, E200B

Turbo Model:TD06H

Engine Power:OEMkw

Size:OEMcm

G.W:10kg

Turbine Material:K18

Power:OEMkw

Displacement:OEMl

Name:TD06H Turbocharger For Caterpillar Turbo Charger

TAG:TD06H

Cooled Type:Oil cooled

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:9kg

Capacity:5.6L

Application:

Caterpillar E320B

Product Description:

TD06H Turbocharger For Caterpillar Turbo Charger

TBS No.	TBS-0189	Related Part No.	Application For
OEM No.	49179-02260	49179-02260 49179-02220 49179-02230 49179-02240 5I7952 5I-7952	Caterpillar E320B
Turbo Model	TD06H
Engine Code	S6K, E320L, E120B/E110B, E200B
Cooled Type	Oil cooled
Power
Build/Year
Capacity	5.6L
Fuel Type	Diesel
Net Weight	9KG
Gross Weight	10KG
Volume
Brand	Tanboress
Warranty	12 Months
Certificate	CE/BV/GMC/TUV/ISO9001

Material Description
1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
