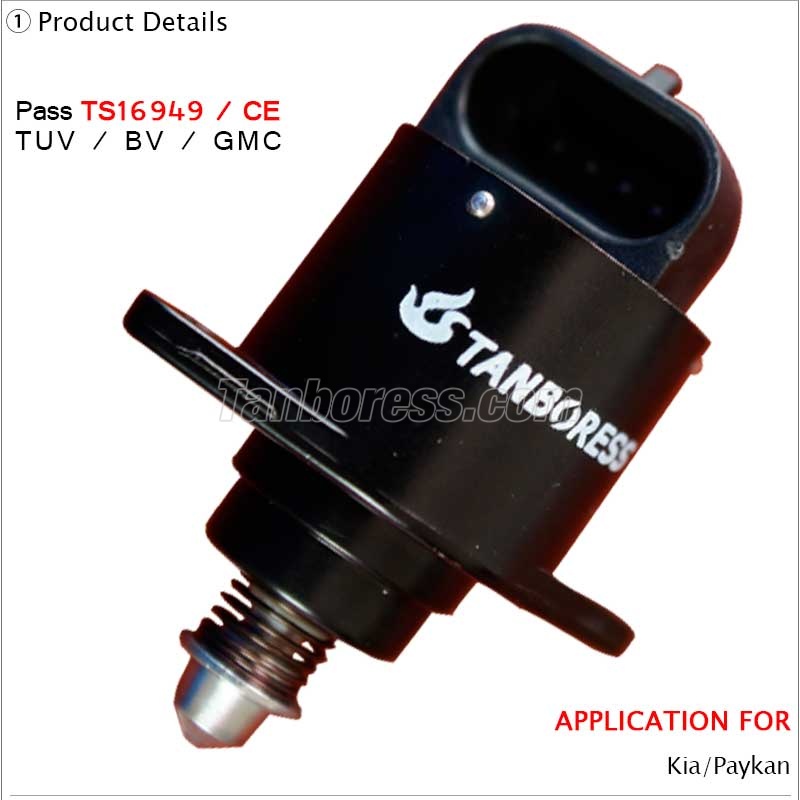

IAC Idle Air Speed Control Valve Motor For Paykan

Language Translator

OEM No/Model:	10165
Minimum Order:	50Piece/Pieces
Export Ratio:	91% - 100%
Unit Price:	10
Quality Certificate:	CE
Samples:	Charge
Sample Price:	10
Payment Terms:	L/C,D/A,T/T,M/T,D/D,CASH,D/P,Paypal
Price Terms:	FOB
Delivery Port:	Dalian,Qingdao,Others
Delivery Time:	Within 7 Days After The Payment
Market Type:	After Market
Packing:	100PCS/CTN Box Or As Custoer'S Request.
Current Export Market:	North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

IAC Idle Air Speed Control Valve Motor For Paykan

Product Attribute:

Temperature of work:-40-125℃

Application:

Paykan

Product Description:

Paykan Idle speed Control

TBS-2706

Kia/Paykan

11059

Material Description & Compare with Other Suppliers Product.
1.Diffrence of the Material of the Connector
Tanboress: PET+GF35
Others: PA66+GF15
Tip: The plastic of PA66+GF15 is more Impact resistance and heat-resistance than others.

2.Difference of Guide Sleeve and Bearing Pedestal
Tanboress: PA66GF30+PTFE15%
Others: PA66+GF15
Tip: Material of PA66GF30+PTFE15% can resist around 80more than others.

3.Difference of the Coil Frame
Tanboress: PPS-GF25
Others: PA66+GF10
Tip: The heat resistance temperature of the material PPS-GF2 is 100 degree higher than others.

4.Difference of the Bearing
Tanboress: Stainless Steel, OD is 13
Others: OD is 12.7
Tip: Longer using life, Smaller clearance, Stable movement, Better idling air floating control.

5.Difference of the Rotor Nut
Tanboress: PPS+GF30+PTFE15%
Others: PA66+GF15
Tip: Tanboress rotor nuts(over 240260), can bear more than 95than others.

6.Difference of Technique Parameter
Tanboress: Step Distance240 step is 9.912mm, is the median(qualified)
Others: Step Distance240 step is 9.773mm,is lower limit(step out or step-missing)
In addition to the aboveThe precision of lead screw and nut is not good,Tanboress lead screw can be stretched flexible, but other lead screw is blocked,axial clearance is oversizeit occurs step-missing. It shows that other lead screw and nuts has bad fit precision, use bad lubrication oil, the lead screw is not self-lubrication material and bad coaxiality.

The material of the head of adjustment we use is the Japanese stainless steel(303 AISI). More strength than the copper material, abrasion resistance, corrosion resistance, rust protection, not easily deformed and high machining precision.

Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.

Now, Contact us for more professional service and accurate data of our products.
