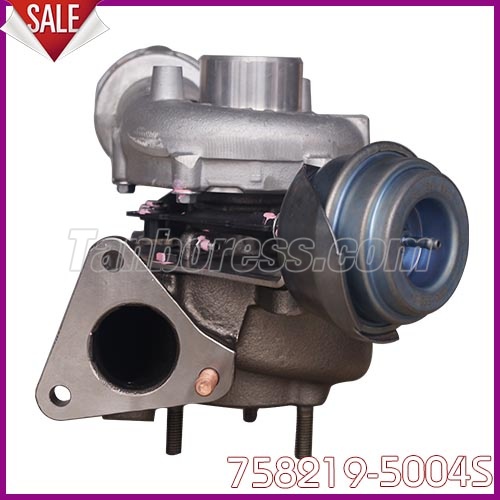

GT1749V Diesel Garrett Turbo

GT1749V Diesel Garrett Turbo
GT1749V Diesel Garrett Turbo
Previous
Next
OEM No/Model:

758219-5004S

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

GT1749V Diesel Garrett Turbo

Product Attribute:

Engine Model:BRE BRF BVG BVF

Turbo Model:GT1749V

Engine Power:140kw

Size:OEMcm

G.W:7kg

Turbine Material :K18

Power:140kw

Displacement:OEMl

Name:Turbocharger GT1749V Turbo Charger For Volkswagen Audi 758219-5004S

Item name:758219-5004S

Cooled Type:Oil cooled

Build/Year:2004-2008

Capacity:1968 ccm

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:6kg

Application:

Volkswagen Passat B6 2.0 TDI Audi A4 2.0 TDI (B7) Audi A6 2.0 TDI (C6)

Product Description:

Turbocharger GT1749V Turbo Charger For Volkswagen Audi 758219-5004S

GT1749V Diesel Garrett Turbo


TBS No.
TBS-0101 Related Part No. Application For
OEM No. 758219-5004S 758219-5004S
758219-9003S
758219-5003S
758219-0003
758219-0002
03G145702F
03G145702FX
03G145702FV
03G145702K
Volkswagen Passat B6 2.0 TDI
Audi A4 2.0 TDI (B7)
Audi A6 2.0 TDI (C6)
Turbo Model GT1749V
Engine Code BRE BRF BVG BVF
Cooled Type Oil cooled
Power 140HP
Build/Year 2004-2008
Capacity 1968 ccm
Fuel Type Diesel
Net Weight 6kg
Gross Weight 7kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001
Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
