Product Name:
BV43 Turbo 53039880205 Turbocharger
Product Attribute:
Engine Model:CBAA CBAB CBAB CBDA CBDB
Turbo Model:BV43
Engine Power:103 KW | 140 HPkw
Size:.cm
G.W:11kg
Turbine Material :K18
Power:103 KW | 140 HPkw,103 KW 140 HP
Name:53039880205 Turbocharger BV43 Turbo For Audi
Item name:53039880205
Cooled Type:Oil cooled
Build/Year:2006-
Capacity:2.0 L 1968 ccm
Fuel Type:.
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Engine type:M9T | ZD3
Application:
Audi A3 2.0 TDI (8P (PA) CBAA CBAB 140 HP | Skoda Yeti 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Eos 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Golf V 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Golf VI 2.0 TDI CBDA CBDB 140 HP | Volkswagen Passat B6 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Scirocco 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Tiguan 2.0 TDI CBAA CBAB 140 HP)
Product Description:

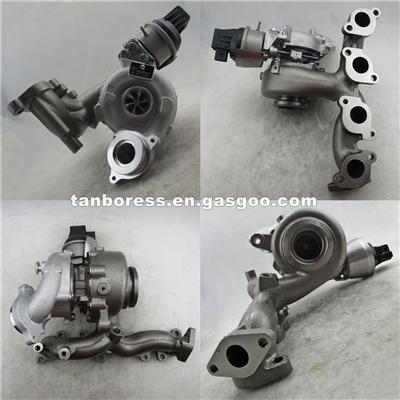

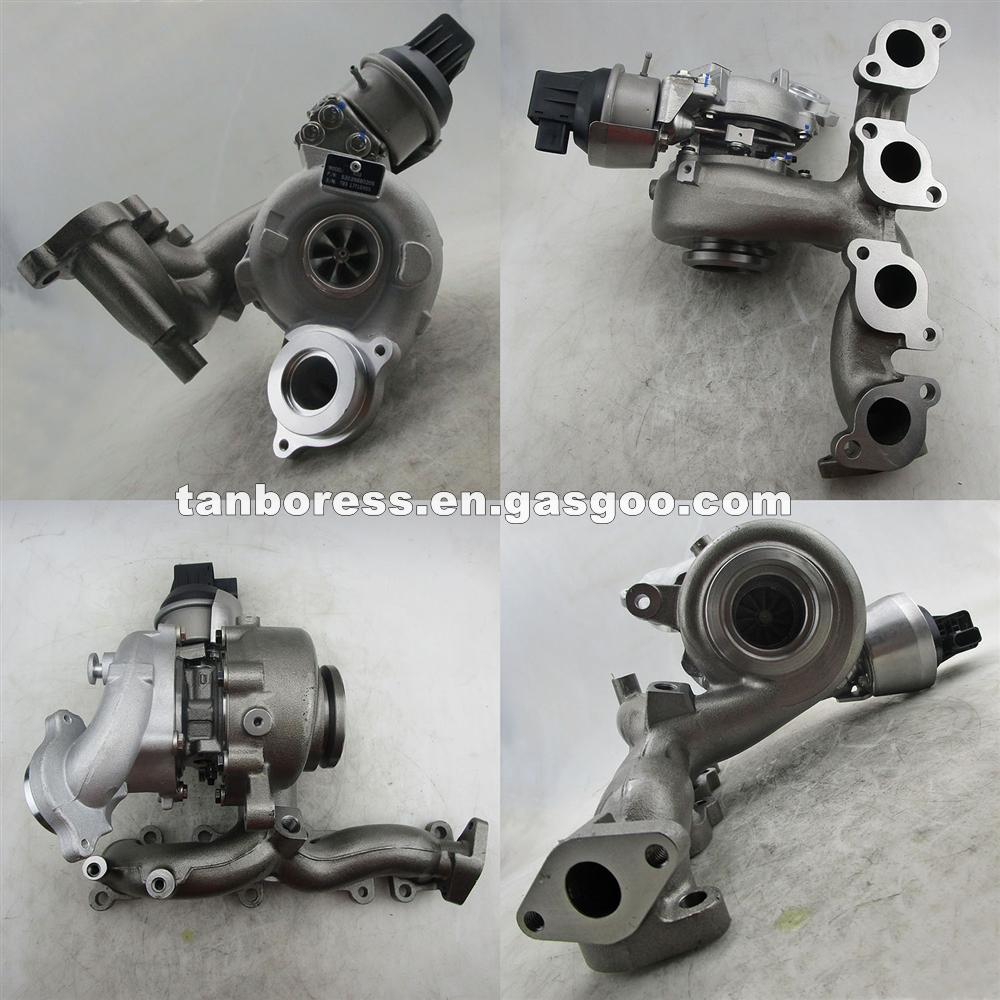

53039880205 Turbocharger BV43 Turbo For Audi
TBS No. |
TBS-2451 |
Related Part No. |
Application For |
|
OEM No. |
53039880205 |
53039880205;
53039880139;
53039880132
03L253019A;
03L253056A;
03L253056AV;
03L253056AX;
03L253019J |
Audi A3 2.0 TDI (8P/PA) CBAA CBAB 140 HP | Skoda Yeti 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Eos 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Golf V 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Golf VI 2.0 TDI CBDA CBDB 140 HP | Volkswagen Passat B6 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Scirocco 2.0 TDI CBAB CBDA CBDB 140 HP | Volkswagen Tiguan 2.0 TDI CBAA CBAB 140 HP |
|
Turbo Model |
BV43 |
|
Engine Code |
CBAA | CBAB | CBAB | CBDA | CBDB |
|
Cooled Type |
Oil cooled |
|
Power103 KW | 140 HP |
|
|
Build/Year |
2006- |
|
Capacity |
2.0 L | 1968 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
10KGS |
|
Gross Weight |
11KGS |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
