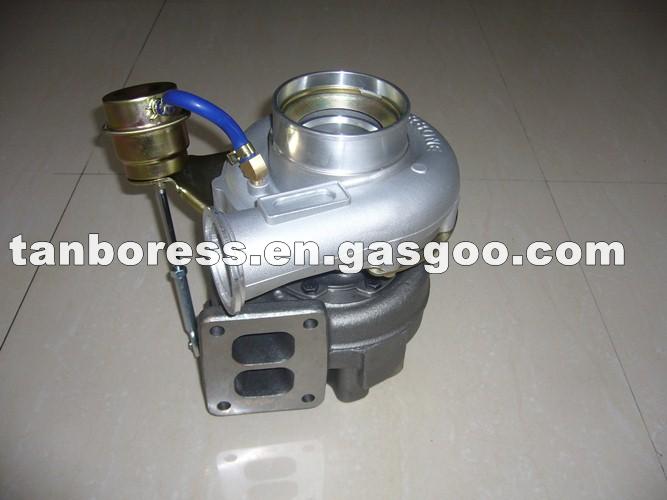

Turbocharger HX50W Turbo Charger For Iveco 3534355

Turbocharger HX50W Turbo Charger For Iveco 3534355
Turbocharger HX50W Turbo Charger For Iveco 3534355
Previous
Next
OEM No/Model:

3534355

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger HX50W Turbo Charger For Iveco 3534355

Product Attribute:

Engine Model:8460.41

Turbo Model:HX50W

Engine Power:1279kw

Size:OEMcm

G.W:26kg

Turbine Material :K18

Power:130 136 140kw

Displacement:OEMl

Name:Turbocharger HX50W Turbo Charger For Iveco 3534355

Item name:3534355

Cooled Type:Oil cooled

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Application:

Iveco EuroTech 440E38 8460.41 380 HP 3532

Product Description:

Turbocharger HX50W Turbo Charger For Iveco 3534355


TBS No.
TBS-0007 Related Part No. Application For
OEM No. 3534355 3534355
3534356
4033179
061320961
61320662
61320961
Iveco EuroTech 440E38 8460.41 380 HP3532
Capacity 1896 ccm/1968 ccm
Fuel Type
Gross Weight 26kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001
Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
