Product Name:

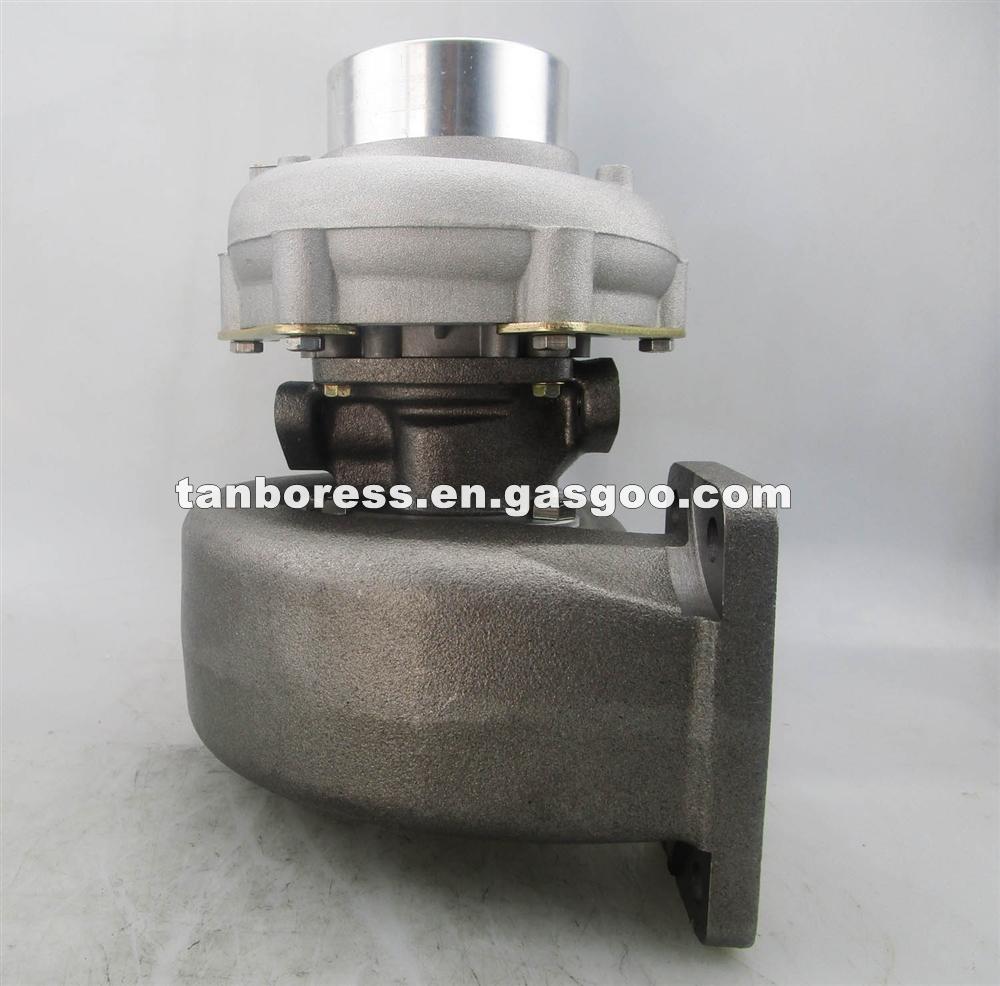

Turbocharger H1C Turbo Charger For Cummins 3535381
Product Attribute:
Engine Model:4TA-390
Turbo Model:H1C
Engine Power:136kw
Size:OEMcm
G.W:8kg
Turbine Material:K18
Power:136kw
Displacement:OEMl
Name:Turbocharger H1C Turbo Charger For Cummins 3535381
Item name:3535381
Cooled Type:Oil cooled
Build/Year:2004
Capacity:2500 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:8kg
Application:
Cummins, JI Case Industrial Engine 4TA-390 Engine
Product Description:
Turbocharger H1C Turbo Charger For Cummins 3535381
|
TBS No. |
TBS-0265 |
Related Part No. |
Application For |
|
OEM No. |
3535381 |
3535381
3528743
3528744
3530721
3535422
3535423
3535424
3535425
3535426
3535427
3536677
3539310
3802290
3906602
J908293
JR908293
J919129
J919130
J919133
J919135
J919139
171270
3520030
3522900
J906602
J914130
J802290
JR802290
535426
536677
3519287
3903667
3535382 |
Cummins, JI Case Industrial Engine 4TA-390 Engine |
|
Turbo Model |
H1C |
|
Engine Code |
4TA-390 |
|
Cooled Type |
Oil cooled |
|
Power |
136HP |
|
Build/Year |
2004 |
|
Capacity |
2500 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
7kg |
|
Gross WeighT |
8kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
