Product Name:

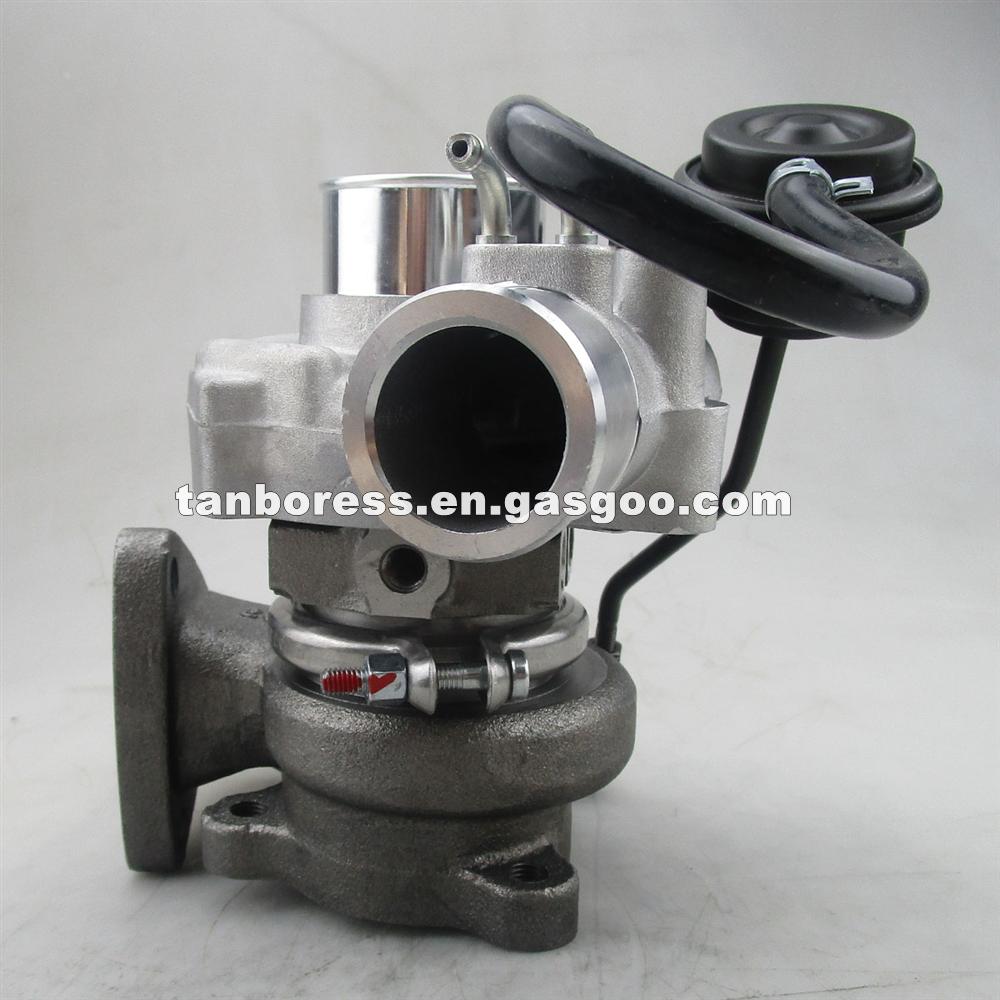

Turbocharger TF035HM Turbo Charger For Hyundai 49135-04111
Product Attribute:
Engine Model:D4EA
Turbo Model:TF035HM
Engine Power:136kw
Size:OEMcm
G.W:7.8kg
Turbine Material :K18
Power:136kw
Displacement:OEMl
Name:Turbocharger TF035HM Turbo Charger For Hyundai 49135-04111
Item name:49135-04111
Cooled Type:Oil cooled
Build/Year:2004
Capacity:2500 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7.8kg
Application:
Scania 124 11.7 L 420 HP | Scania Bus 11.7 L 420 HP
Product Description:
Turbocharger TF035HM Turbo Charger For Hyundai 49135-04111
|
TBS No. |
TBS-0340 |
Related Part No. |
Application For |
|
OEM No. |
49135-04111 |
49135-04111
49135-04112
49135-04121
49135-04210
49135-04211
49135-04212
28200-4A201
28200-4A161
4913504111
4913504112
4913504121
4913504210
4913504211
4913504212
282004A201
282004A161 |
Hyundai Galloper II 2.5 TDI 99 HP | Hyundai Commercial Starex (H1) 2.5 TDI 99 HP | Hyundai Terracan CRDi 2.5 TDI 99 HP |
|
Turbo Model |
TF035HM |
|
Engine Code |
D4EA |
|
Cooled Type |
Oil cooled |
|
Power |
136HP |
|
Build/Year |
2004 |
|
Capacity |
2500 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
7kg |
|
Gross Weight |
7.8kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
