Product Name:

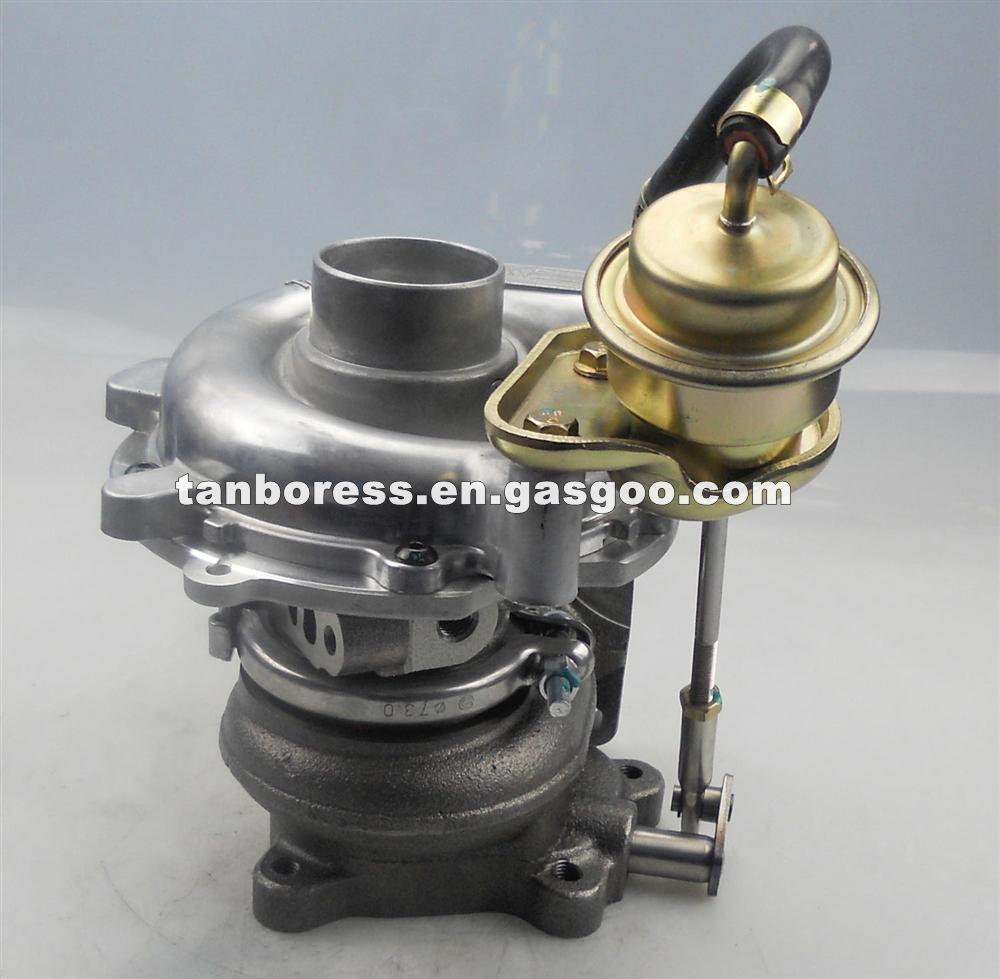

Turbocharger RHF4H Turbo Charger For Isuzu 8-97331-1851
Product Attribute:
Engine Model:DTA466B
Turbo Model:RHF4H
Engine Power:130 136 140kw
Size:OEMcm
G.W:7kg
Turbine Material:K18
Power:130 136 140kw
Displacement:OEMl
Name:Turbocharger RHF4H Turbo Charger For Isuzu 8-97331-1851
Item name:8-97331-1851
Cooled Type:Oil cooled
Build/Year:2000-2008
Capacity:1896 ccm/1968 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7kg
Application:
Isuzu Various | Isuzu Excavator
Product Description:
Turbocharger RHF4H Turbo Charger For Isuzu 8-97331-1851
TBS No. |
TBS-0673 |
Related Part No. |
Application For |
|
OEM No. |
8-97331-1851 |
466772-0001
466772-0002
466772-0003
466772-0004
466772-0005
466772-1
466772-2
466772-3
466772-4
466772-5
466772-5001S
466772-5002S
466772-5003S
466772-5004S
466772-5005S
466772-9001
466772-9002
466772-9003
VIDZ
VB420076
8973311850
8973311851
8-97331-1850
8-97331-1851
897331-1850
897331-1851
4T505
4T-505 |
Isuzu Various | Isuzu Excavator |
|
Turbo Model |
RHF4H |
|
Engine Code |
DTA466B |
|
Cooled Type |
Oil cooled |
|
Power |
130HP / 136HP/140HP |
|
Build/Year |
2000-2008 |
|
Capacity |
1896 ccm/1968 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
7kg |
|
Gross Weight |
8.5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
