Product Name:

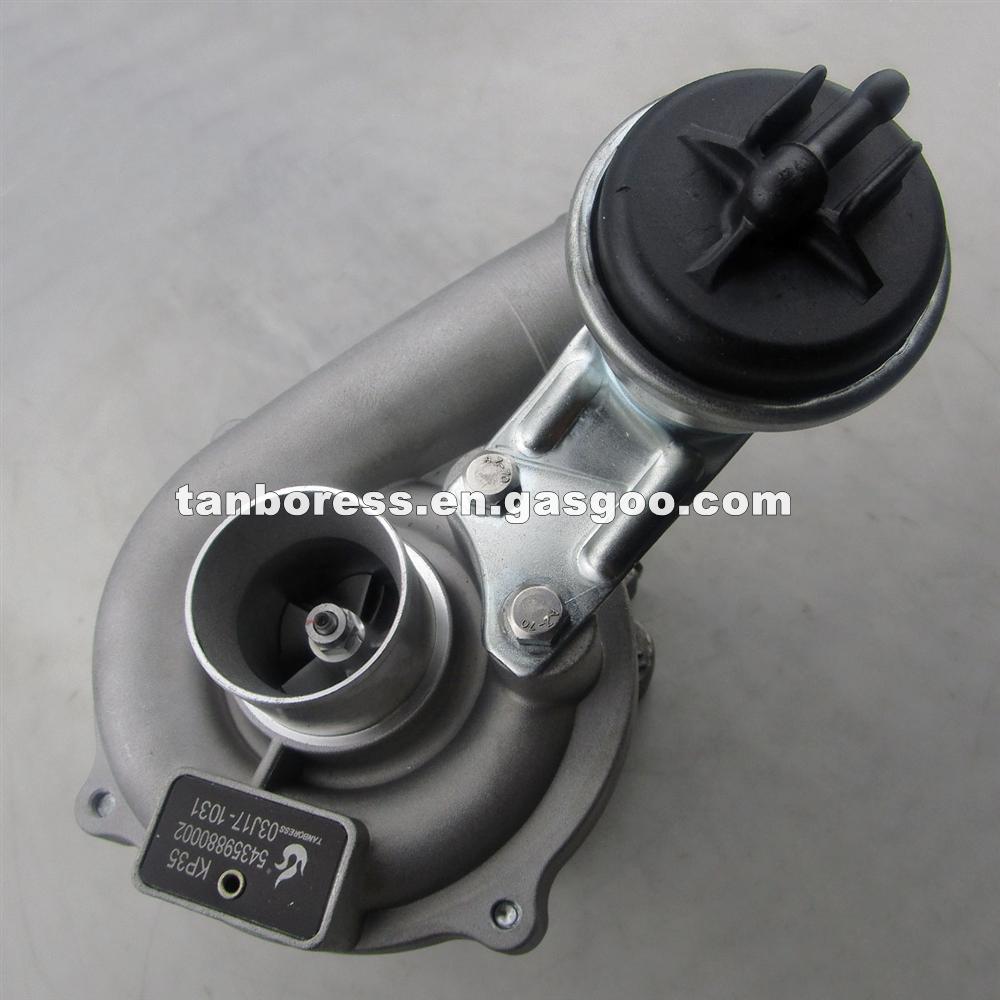

Turbocharger KP35 Turbo Charger For Dacia | Nissan | Renault 54359880002
Product Attribute:
Engine Model:K9K
Turbo Model:KP35
Engine Power:130kw
Size:OEMcm
G.W:5kg
Turbine Material:K18
Power:130kw
Displacement:OEMl
Name:Turbocharger KP35 Turbo Charger For Dacia Nissan Renault 5435988002
Item name:5435988002
Cooled Type:Oil cooled
Build/Year:2004
Capacity:2460 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:7kg
Application:
Dacia Logan 1.5 DCI K9K-700 65 HP | Nissan Almera 1.5 DCI K9K-260 82 HP | Nissan Micra 1.5 DCI K9K-260 82 HP | Renault Clio II 1.5 DCI K9K-700 65 HP | Renault Clio II 1.5 DCI K9K-702 82 HP | Renault Kangoo I 1.5 DCI K9K-700 57 HP | Renault Kangoo I 1.5 DCI K9K-700 65 HP | Renault Kangoo I 1.5 DCI K9K-702 80 HP | Renault Megane II 1.5 DCI K9K-702 82 HP
Product Description:
Turbocharger KP35 Turbo Charger For Dacia | Nissan | Renault 54359880002
TBS No. |
TBS-0033ch |
Related Part No. |
Application For |
|
OEM No. |
54359880002 |
54359880002
54359700002
54359710002
54359550002
5435 988 0002
5435 970 0002
5435 971 0002
5435 955 0002
5435-988-0002
5435-970-0002
5435-971-0002
5435-955-0002
7701473673
7711135039
8200119854
8200189536
8200189538
8200351471
8200409037
8200578317
8200578338 |
Volkswagen T5 Transporter 2.5TDI |
|
Turbo Model |
KP35 |
|
Engine Code |
R5K AXD |
|
Cooled Type |
Oil cooled |
|
Power |
130HP |
|
Build/Year |
2004 |
|
Capacity |
2460 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
4kg |
|
Gross Weight |
5kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
Now, Contact us for more
professional service and accurate data of our products.
Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
