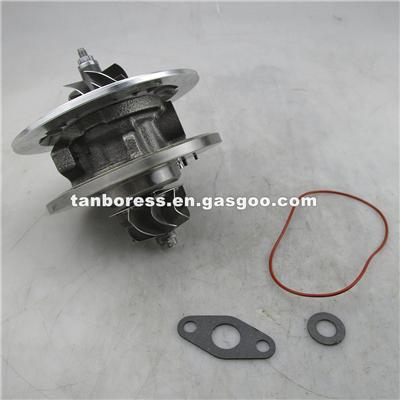

Turbocharger GT1749V Turbo ChargerCHRA For Fiat | Lancia 712665-2

Turbocharger GT1749V Turbo ChargerCHRA For Fiat | Lancia 712665-2
Turbocharger GT1749V Turbo ChargerCHRA For Fiat | Lancia 712665-2
Previous
Next
OEM No/Model:

712665-2

Minimum Order:

1Piece/Pieces

Export Ratio:

91% - 100%

Quality Certificate:

CE

Samples:

Charge

Place of Region:

China

Payment Terms:

L/C,T/T,paypal

Price Terms:

EXW

Delivery Port:

Dalian,Qingdao,Others

Delivery Time:

Within 7 Days After The Payment

Market Type:

After Market

Packing:

1.Neutral Packing Or The Package As Requirement. 2.One Turbo In A Carton. 3.Wooden Case Is A Good Choice For Ocean Shipping.

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

Turbocharger GT1749V Turbo ChargerCHRA For Fiat | Lancia 712665-2

Product Attribute:

Engine Model:D375A-5

Turbo Model:GT1749V

Engine Power:130 136 140kw

Size:OEMcm

G.W:6.5kg

Turbine Material:K18

Power:130 136 140kw

Displacement:OEMl

Name:Turbocharger GT1749V Turbo Charger CHRA For Fiat Lancia 712665-2

Item name:712665-2

Cooled Type:water cooled

Build/Year:2000-2008

Capacity:1896 ccm/1968 ccm

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:6.5kg

Application:

Alfa-Romeo 147 1.9 JTD 140 HP | Alfa-Romeo 156 1.9 JTD 140 HP | Fiat Stilo 1.9 JTD 140 HP | Lancia Lybra 1.9 JTD 140 HP

Product Description:

Turbocharger GT1749V Turbo ChargerCHRA For Fiat | Lancia 712665-2


TBS No.
TBS-0494 Related Part No. Application For
OEM No. 712665-2 712665-0002
712665-2
712665-5002S
712665-5002
716665-0001
716665-0002
716665-0003
716665-1
716665-2
716665-3
716665-5001S
716665-5002S
716665-5003S
716665-9003S
716665-5001
716665-5002
716665-5003
716665-9003
46793334
55191934
71783873
71783874
71783875
71785259
71785260
71785261
Alfa-Romeo 147 1.9 JTD 140 HP | Alfa-Romeo 156 1.9 JTD 140 HP | Fiat Stilo 1.9 JTD 140 HP | Lancia Lybra 1.9 JTD 140 HP
Turbo Model GT1749V
Engine Code 1.8 L - 5V longs/along
Cooled Type water cooled
Power 130HP / 136HP/140HP
Build/Year 2000-2008
Capacity 1896 ccm/1968 ccm
Fuel Type Diesel
Net Weight 6kg
Gross Weight 6.5kg
Volume
Brand Tanboress
Warranty 12 Months
Certificate CE/BV/GMC/TUV/ISO9001
Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.


Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)

Now, Contact us for more
professional service and accurate data of our products.

Business Information
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T, Western Union, Paypal, Escrow.
Payment Condition: 30% desposit in advance, 70% balance before delivery
Delivery Time: Within 7 days after the payment
Packing: 1.Neutral Packing Or the package as requirement.
2.One turbo in a Carton.
3.Wooden case is a good choice for ocean shipping.
Shipping: By sea,by air and by express delivery.
After-sale Service:24 Hours around the clock & 12 Months Warranty.
