Product Name:

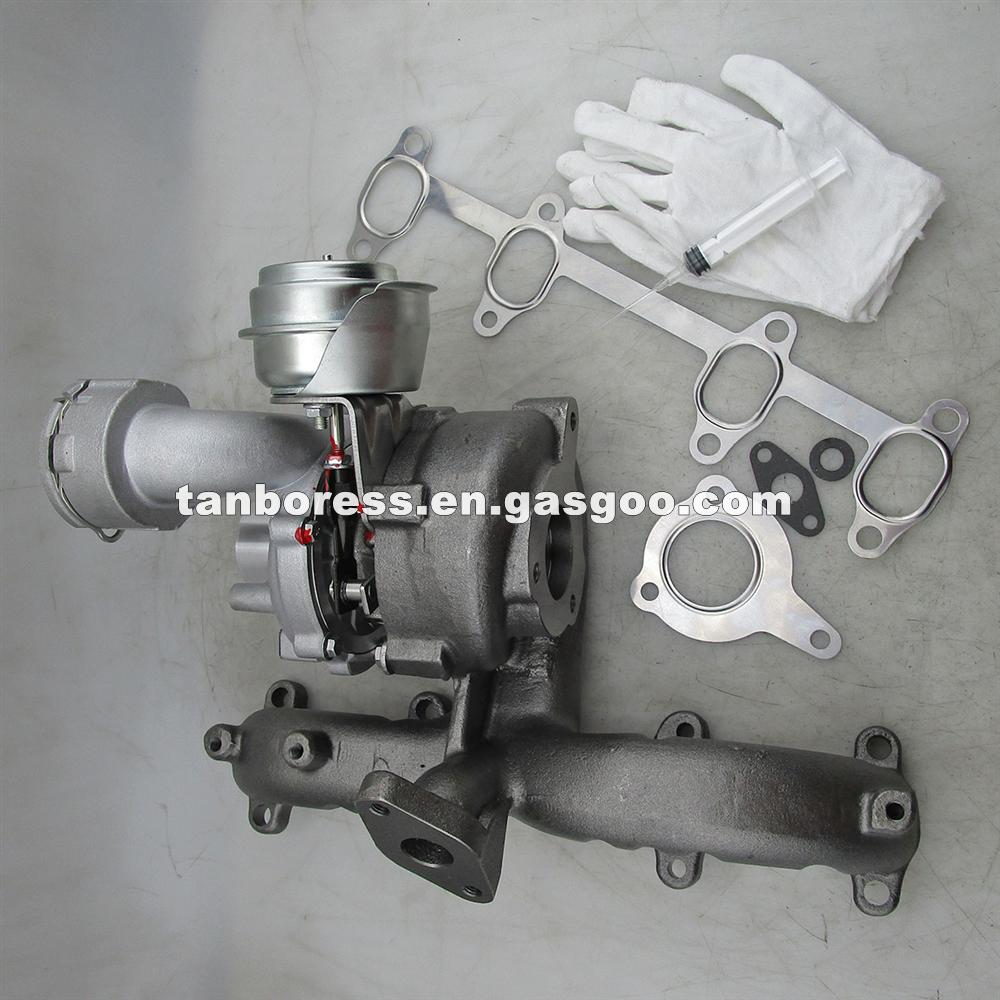

Turbocharger GT1749V (S2) Turbo Charger For 721021-0001
Product Attribute:
Engine Model:ARL
Turbo Model:GT1749V (S2)
Engine Power:136kw
Size:OEMcm
G.W:10kg
Turbine Material :K18
Power:136kw
Displacement:OEMl
Name:Turbocharger GT1749V (S2) Turbo Charger For 721021-0001
Item name:721021-0001
Cooled Type:Oil cooled
Build/Year:2004
Capacity:2500 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:10kg
Application:
Audi A3 1.9 TDI (8L) ARL 150 HP | Seat Ibiza II 1.9 TDI ARL 150 HP | Seat Leon 1.9 TDI ARL 150 HP | Seat Toledo II 1.9 TDI ARL 150 HP | Volkswagen Bora 1.9 TDI ARL 150 HP | Volkswagen Golf IV 1.9 TDI ARL 150 HP
Product Description:
Turbocharger GT1749V (S2) Turbo Charger For 721021-0001
|
TBS No. |
TBS-0136 |
Related Part No. |
Application For |
|
OEM No. |
721021-0001 |
721021-0001
721021-0002
721021-0003
721021-0004
721021-0005
721021-0006
721021-0008
721021-1
721021-2
721021-3
721021-4
721021-5
721021-6
721021-8
721021-5001S
721021-5002S
721021-5003S
721021-5004S
721021-5005S
721021-5006S
721021-5008S
721021-9006S
721021-9008S
038253016G
038253016GV
038253016GX
038253016GV500
038253016GV510
03G253016R
03G253016RV
03G253016RX |
Audi A3 1.9 TDI (8L) ARL 150 HP | Seat Ibiza II 1.9 TDI ARL 150 HP | Seat Leon 1.9 TDI ARL 150 HP | Seat Toledo II 1.9 TDI ARL 150 HP | Volkswagen Bora 1.9 TDI ARL 150 HP | Volkswagen Golf IV 1.9 TDI ARL 150 HP |
|
Turbo Model |
GT1749V (S2) |
|
Engine Code |
ARL |
|
Cooled Type |
Oil cooled |
|
Power |
136HP |
|
Build/Year |
2004 |
|
Capacity |
2500 ccm |
|
Fuel Type |
Diesel |
|
Net Weight |
6kg |
|
Gross Weight |
7kg |
|
Volume |
|
|
Brand |
Tanboress |
|
Warranty |
12 Months |
|
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
