Product Name:

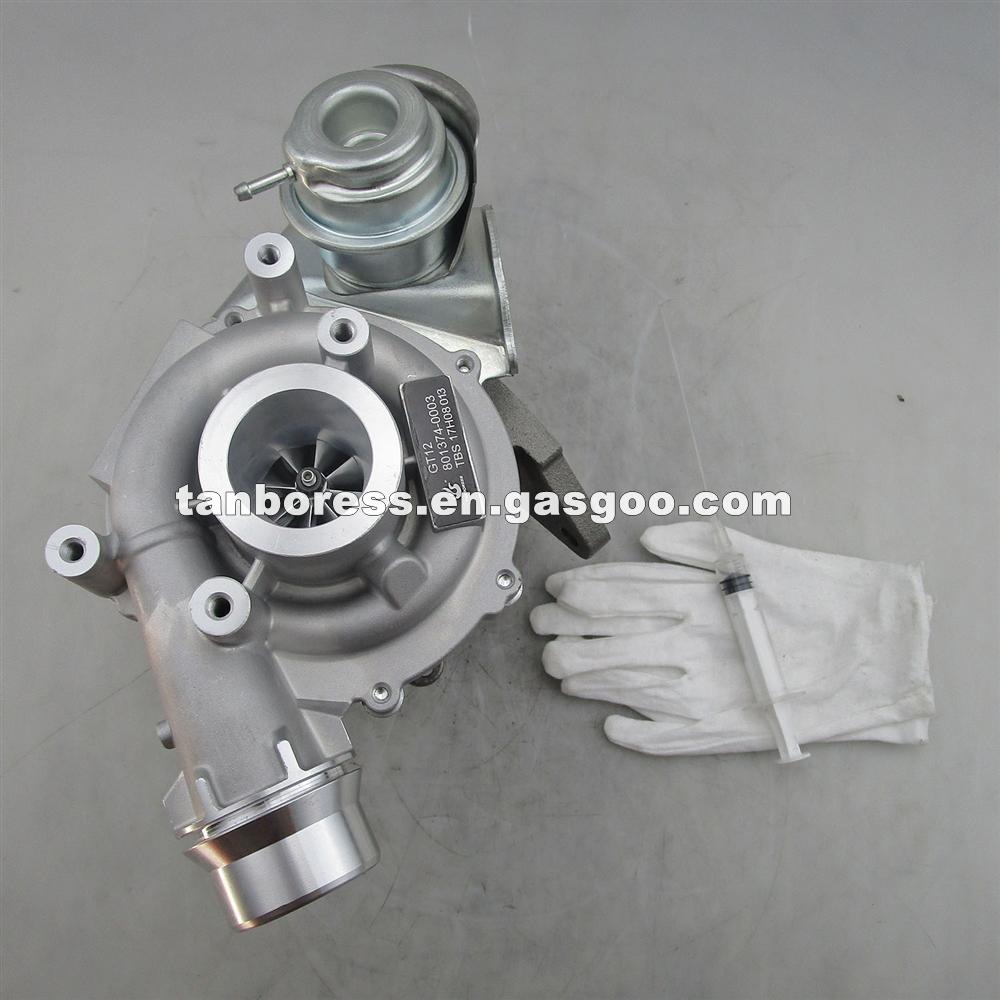

Turbocharger GT12 Turbo Charger For Renault 801374-0003
Product Attribute:
Engine Model:K9K
Turbo Model:GT12
Engine Power:136kw
Size:OEMcm
G.W:5.5kg
Turbine Material:K18
Power:136kw
Displacement:OEMl
Name:Turbocharger GT12 Turbo Charger For Renault 801374-0003
Item name:801374-0003
Cooled Type:Oil cooled
Build/Year:2004
Capacity:2500 ccm
Fuel Type:Diesel
Brand:Tanboress
Warranty:12 Months
Certificate:CE/BV/GMC/TUV/ISO9001
Net Weight:5.5kg
Application:
Renault Clio 1.5 dCi 90 HP | Renault Kangoo 1.5 dCi 90 HP
Product Description:
Turbocharger GT12 Turbo Charger For Renault 801374-0003
TBS No. |
TBS-1760 |
Related Part No. |
Application For |
OEM No. |
801374-0003 |
801374-0003
801374-0004
801374-3
801374-4
801374-5003S
801374-5004S
801374-5003
801374-5004
144117533RC
144117533
14411-7533RC
14411-7533
TFU05930R |
Renault Clio 1.5 dCi 90 HP | Renault Kangoo 1.5 dCi 90 HP |
Turbo Model |
GT12 |
Engine Code |
K9K |
Cooled Type |
Oil cooled |
Power |
136HP |
Build/Year |
2004 |
Capacity |
2500 ccm |
Fuel Type |
Diesel |
Net Weight |
5kg |
Gross Weight |
5.5kg |
Volume |
|
Brand |
Tanboress |
Warranty |
12 Months |
Certificate |
CE/BV/GMC/TUV/ISO9001 |
Material Description
1. Compressor Housing : ZL 101 Cast aluminum
2. Turbine Housing : D-5S. Scope of heat-resistant950°
3. Bearing Housing : HT250 Gray iron
4. Compressor Wheel : ZL201 or C355 cast aluminums
5. Turbine Wheel : K18. Scope of heat-resistant950°
6. Turbine Shaft : 42CrMo
7. Floating Bearing : CW713R
8. Seal Ring : CrMoNiTi
9. Thrust Bearing : CW713R or ZQSn10-10
Really close to OEM manufacturers quality!
Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.
Machining Precision Description
High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC
1. Compressor Housing: Machining precision up to IT6 grades
2. Turbine Housing: Machining precision up to IT6 grades
3. Center Housing: Machining precision up to IT6 grades
4. Compressor Wheel: Accurate run-out, verticality and ovality
5. Turbine Wheel: Overall friction welding technology
The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!
Product Performance Testing Description:
1. The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2. The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3. Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4. Overall Performance Test Bench(Test Bench China NJ408)
