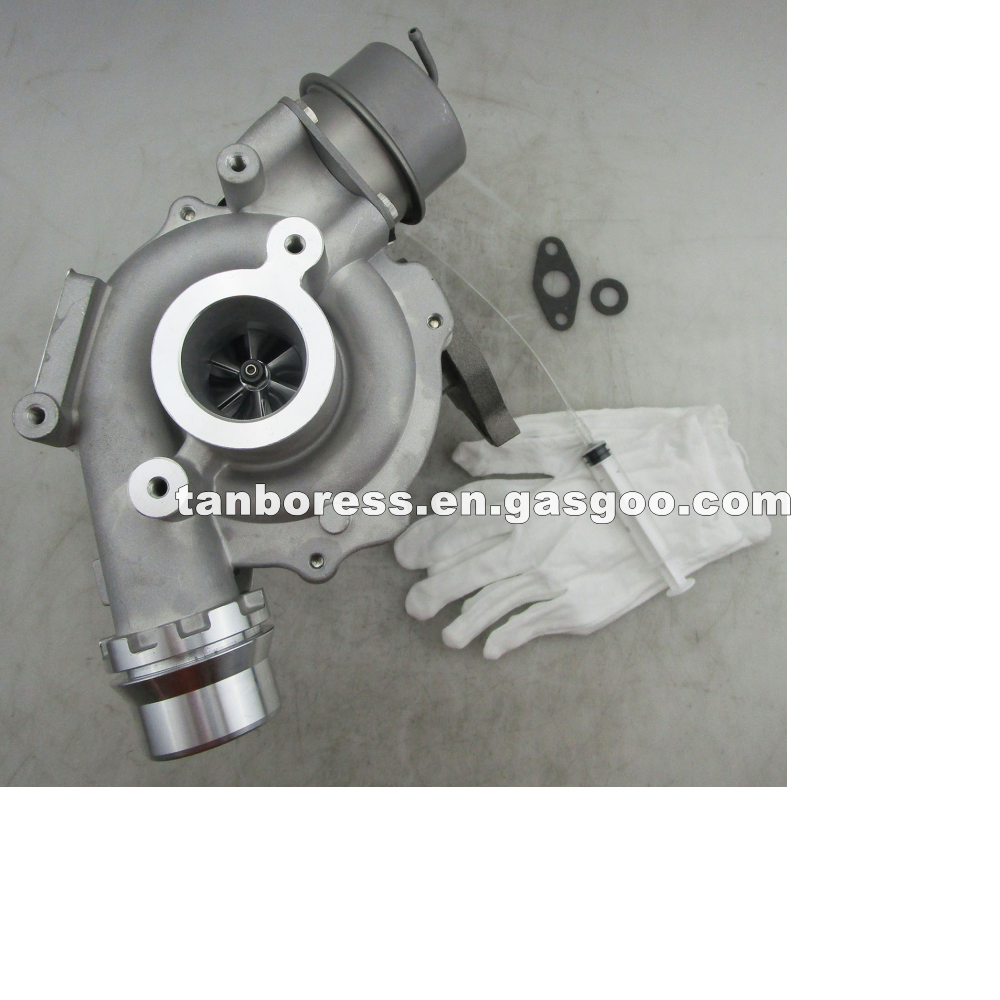

Turbocharger BV38-4 Turbo Charger For Dacia | Nissan 54389700002

Product Name:

Turbocharger BV38-4 Turbo Charger For Dacia | Nissan 54389700002

Product Attribute:

Engine Model:K9K FAP

Turbo Model:BV38-4

Engine Power:136kw

Size:OEMcm

G.W:7.5kg

Turbine Material:K18

Power:136kw

Displacement:OEMl

Name:Turbocharger BV38-4 Turbo Charger For Dacia Nissan 54389700002

Item name:54389700002

Cooled Type:Oil cooled

Build/Year:2004

Capacity:2500 ccm

Fuel Type:Diesel

Brand:Tanboress

Warranty:12 Months

Certificate:CE/BV/GMC/TUV/ISO9001

Net Weight:7.5kg

Application:

Dacia Duster 1.5 dCi 110 HP | Nissan Cube 1.5 dCi 110 HP | Nissan Juke 1.5 dCi 110 HP | Nissan Qashqai 1.5 dCi 110 HP | Renault Scenic III 1.5 dCi 110 HP | Renault Kangoo 1.5 dCi 110 HP | Renault Megane 1.5 dCi 110 HP | Mercedes-Benz Citan 1.5 dCi 110 HP | Mercedes-Benz A Class 1.5 dCi 110 HP | Mercedes-Benz B Class 1.5 dCi 110 HP

Product Description:

Turbocharger BV38-4 Turbo Charger For Dacia | Nissan 54389700002

Material Description

1.     Compressor Housing : ZL 101 Cast aluminum
2.     Turbine Housing : D-5S. Scope of heat-resistant950°
3.     Bearing Housing : HT250 Gray iron
4.     Compressor Wheel : ZL201 or C355 cast aluminums
5.     Turbine Wheel : K18. Scope of heat-resistant950°
6.     Turbine Shaft : 42CrMo
7.     Floating Bearing : CW713R
8.     Seal Ring : CrMoNiTi
9.     Thrust Bearing : CW713R or ZQSn10-10

Really close to OEM manufacturers quality!

Really the lowest repair rate under the same shelf life!
Really high-temperature resistant, non-deformation for a long time!
Manufacturerprovide you with detailed product material testing report.

Machining Precision Description

High-precision processing equipmentHARDINGE CNC
4-axis linkage machining centerJirfine Taiwan CNC

1.     Compressor Housing: Machining precision up to IT6 grades
2.     Turbine Housing: Machining precision up to IT6 grades
3.     Center Housing: Machining precision up to IT6 grades
4.     Compressor Wheel: Accurate run-out, verticality and ovality
5.       Turbine Wheel: Overall friction welding technology

The more accurate data belong to our trade secrets.
Should further information be required, please feel free to contact us!

Product Performance Testing Description:

1.   The TURBO ROTOR SHAFT & WHEEL Balancing Test(Italy REDAT)
Detection Accuracy = 0.0001g
Test Frequency = 100%
2.   The TURBO CARTRIDGE Balancing Test(UK TECHNICS)
Vibration Detection Accuracy ± 1%
Inspection Frequency = 100%
3.   Bypass Valve Test(Italy REDAT)
Detection Accuracy Test ± 0.5%
Detection Frequency = 100%
4.      Overall Performance Test Bench(Test Bench China NJ408)
